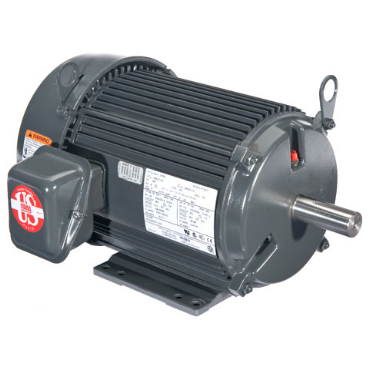

U.S. Motors U25P2D General Purpose Three Phase TEFC Unimount NEMA Premium Efficient - IE3 Motor

Product Description

The U.S. Motors U25P2D is a three-phase general purpose motor designed for efficient operation. This motor delivers a power output of twenty-five horsepower and operates at a speed of eighteen hundred revolutions per minute. It is designed for a wide range of applications, making it suitable for various industrial equipment including fans, blowers, compressors, and pumps.

• Efficiency rating: NEMA Premium Efficient
• Durable TEFC (Totally Enclosed Fan Cooled) enclosure
• Suitable for dual voltage systems (208-230/460 and 190/380)

Product Highlights

This motor is built for continuous duty with a high efficiency of 93.6%, providing reliable performance in diverse applications.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U25P2D

Technical Specifications

• Horsepower: 25
• RPM: 1800
• Voltage Rating: 208-230/460 & 190/380
• Phase: Three Phase
• Efficiency Group: Premium Efficient
• Enclosure: TEFC
• Mounting Type: Horizontal - Footed
• Frame Size: 284T, 284TC
• Full Load Amps: 65-59/29.3
• Full Load Efficiency: 93.6%
• Weight: 280 LB
