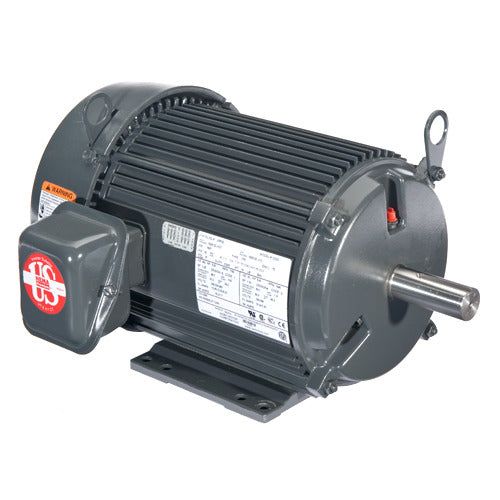

U.S. Motors U25P1GS General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U25P1GS is a general purpose three phase motor designed for various industrial applications. With a power output of twenty-five horsepower, this motor operates at three thousand six hundred revolutions per minute and is rated for five hundred seventy-five volts. Built with a TEFC enclosure, it ensures protection against dust and moisture, making it suitable for indoor and outdoor use.

• Powerful 25 HP motor for versatile applications
• Designed for continuous duty operation
• Efficient performance with an operational efficiency of 91.7%

Product Highlights

This motor is ideal for fans, blowers, compressors, and pumps. It features a horizontal footed mount and a 284TS frame which makes installation straightforward in various setups.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: U25P1GS

Technical Specifications

• Phase: Three Phase
• Frame Size: 284TS
• Insulation Class: F
• Mounting Type: Horizontal - Footed
• Enclosure Type: TEFC - Totally Enclosed Fan Cooled
• Frame Material: Aluminum
• Poles: 2
• Duty Type: Continuous Duty
• Frequency: 60 Hz
• Full Load Amps: 22.7
• Rated RPM: 3600 RPM
• Voltage Rating: 575
• Full Load Efficiency: 91.7%
• Weight: 250.0 LB
• UPC: 786382089306
