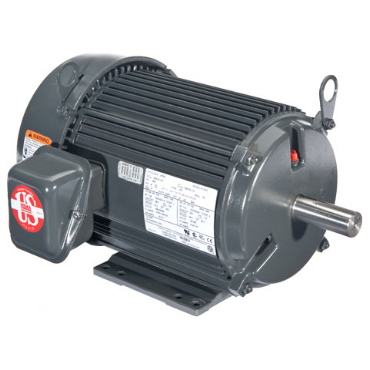

U.S. Motors U25P1D General Purpose Three Phase TEFC, Unimount NEMA Premium Efficient - IE3 Motor

Product Description

The U.S. Motors U25P1D is a reliable and efficient general-purpose motor designed for various industrial applications. This three-phase motor operates at twenty-five horsepower and spins at three thousand six hundred RPM. It features a totally enclosed fan-cooled (TEFC) design, ensuring durability and protection from environmental factors.

• Capacity: 25 HP
• Speed: 3600 RPM
• Voltage Range: 208-230/460 & 190/380

Product Highlights

This motor is ideal for use in applications like fans, blowers, compressors, and pumps. It delivers continuous duty performance and features premium efficiency, making it compliant with energy standards.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: U25P1D

Technical Specifications

• Frame Material: Aluminum
• Phase: Three Phase
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Insulation: F
• Full Load RPM: 3600 RPM
• Full Load Amps: 65-57/28.4
• Efficiency: 91.7%
• Mounting: Horizontal - Footed
• Service Factor: 1.25
• Motor Application: General Purpose
