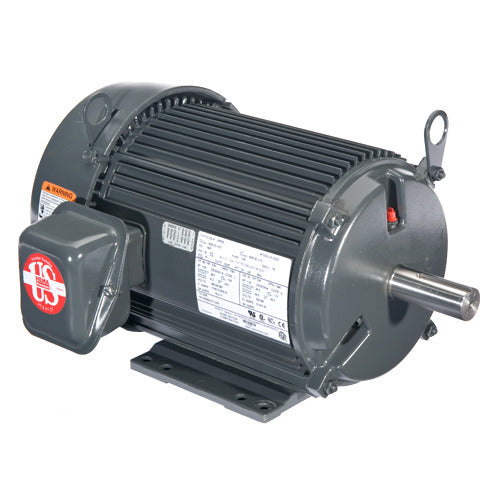

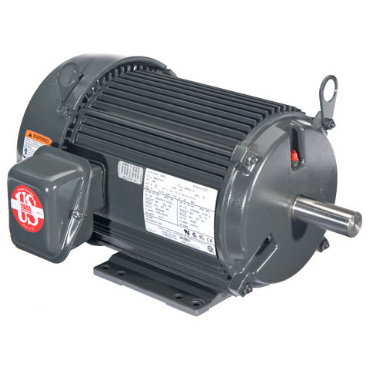

U.S. Motors U20P2H General Purpose Three Phase TEFC Unimount NEMA Premium Efficient - IE3 Motor

Product Description

The U.S. Motors U20P2H is a general purpose motor designed for various industrial applications. This motor features a three-phase TEFC (Totally Enclosed Fan Cooled) design, promoting efficient operation throughout its service life. The motor works best in environments requiring consistent performance under load.

• Powerful 20 hp output
• Rated for 1800 rpm at 60 Hz
• Constructed for robust performance with premium efficiency

Product Highlights

This motor is ideal for using in fans, blowers, compressors, and pumps, providing reliability and effective power for any industrial setting.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U20P2H

Technical Specifications

• Motor Application: General Purpose
• HP: 20
• Voltage Rating: 200
• Frame: 256T
• Frame Material: Aluminum
• Phase: Three Phase
• Efficiency Group: Premium Efficient
• Full Load Amps: 54
• Full Load RPM: 1800
• Service Factor: 1.25
• Enclosure: TEFC
• Weight: 250 lb
