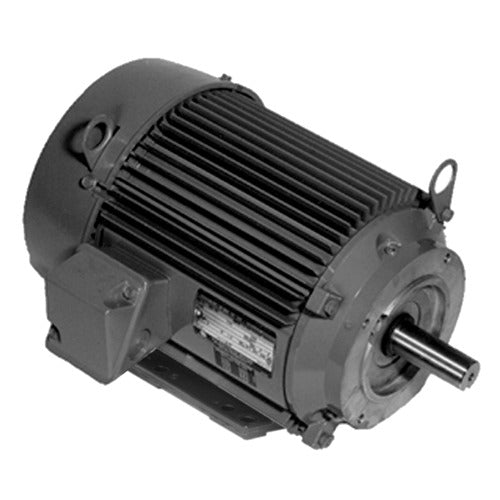

U.S. Motors U20P2DCR General Purpose Three Phase TEFC C-Face Footless Motor

Product Description

The U.S. Motors U20P2DCR is a general purpose three-phase motor designed for various applications including pumps, fans, and compressors. This motor operates at twenty horsepower and reaches an operational speed of one thousand eight hundred rpm. With a voltage rating of two hundred eight to two hundred thirty or four hundred sixty volts, its rugged design makes it suitable for harsh environments.

• 20 horsepower
• 1800 rpm speed
• TEFC enclosure

Product Highlights

This motor features a footless and horizontal mounting design, making it versatile for installation in various setups. It has sealed bearings and dual voltage ratings, enhancing its usability in different electrical systems.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U20P2DCR

Technical Specifications

• Motor Application: General Purpose
• Mounting: Horizontal - Footless
• Duty: Continuous Duty
• Insulation: Class F
• Voltage Rating: 208-230/460 & 190/380 volts
• RPM: 1800
• Service Factor: 1.25
• Poles: 4
• Full Load Efficiency: 93%
• Frame: 256TC
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Full Load Amps: 53-47/23.5
• Phase: Three Phase
• Weight: 230.0 lbs
• EAN or UPC: 786382104597
