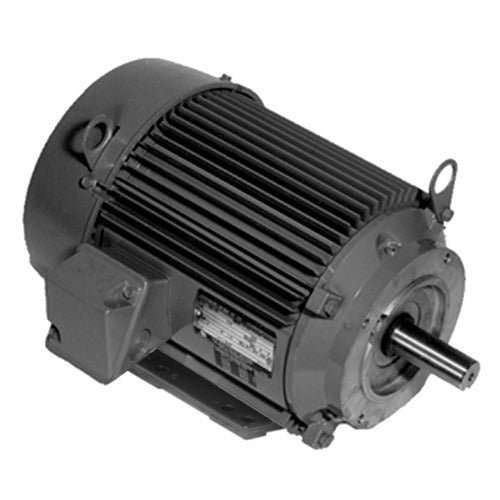

U.S. Motors U20P1DC General Purpose Three Phase TEFC Unimount NEMA Premium Efficient - IE3 C-Face Footed Motor

Product Description

The U.S. Motors U20P1DC is a general-purpose motor designed for a variety of applications. This three-phase motor features a totally enclosed fan cooled (TEFC) enclosure and operates at a horsepower rating of twenty. The motor is ideal for use in pumps, compressors, and fans, functioning efficiently in environments where dust and moisture might be present.

• Rated for 20 HP and 3600 RPM
• Compatible with multiple voltage ratings (208-230/460 & 190/380)
• Designed for horizontal mounting with a C-Face footed structure

Product Highlights

This motor is engineered to meet demanding industrial needs while providing flexibility with dual voltage options. It ensures reliable performance with minimal maintenance.

Product Information

Standard Information

• Mounting: Horizontal - Footed
• Frame: 256TC

Technical Specifications

• Duty: Continuous Duty
• Phase: Three Phase
• Insulation: Class F
• Service Factor: 1.25
• Full Load Efficiency: 91%
• C Dimension: 25.8 inches
• Weight: 220.0 LB
• Voltage Rating: 208-230/460 & 190/380
