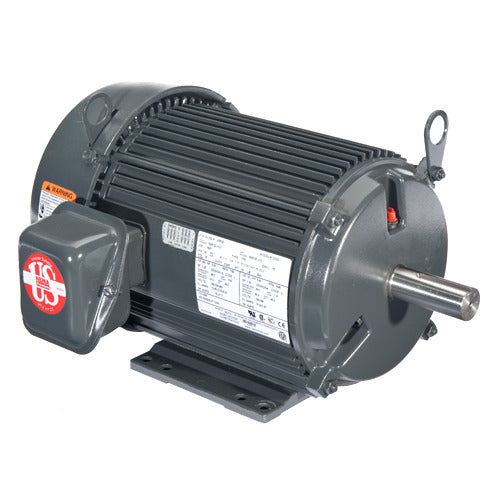

U.S. Motors U1P4D General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U1P4D is a general-purpose three-phase motor designed for various industrial applications. It operates at 1 horsepower with a speed of 900 RPM. This motor features a TEFC (Totally Enclosed Fan Cooled) enclosure that enhances its durability and efficiency. The mounting is horizontal and footed, making it suitable for a wide array of installations.

• Rated for 1 hp and 900 RPM
• TEFC enclosure offers protection in harsh conditions
• Three-phase power with a voltage rating of 208-230/460 and 190/380

Product Highlights

This motor is built for continuous duty and can be used in equipment like fans, blowers, and pumps. With a service factor of 1.25, it is designed to handle higher loads reliably.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U1P4D

Technical Specifications

• Insulation: F
• RPM: 900 rpm
• Frame Material: Aluminum
• Phase: Three Phase
• Frame: 182T
• C Dimension: 12.6 in
• Duty: Continuous Duty
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Full Load Amps: 4.5-4.6/2.3
• Motor Application: General Purpose
• Mounting: Horizontal - Footed
• Service Factor: 1.25
• Full Load Efficiency: 75.5%
• Weight: 60.0 LB
• EAN or UPC: 786382117948
