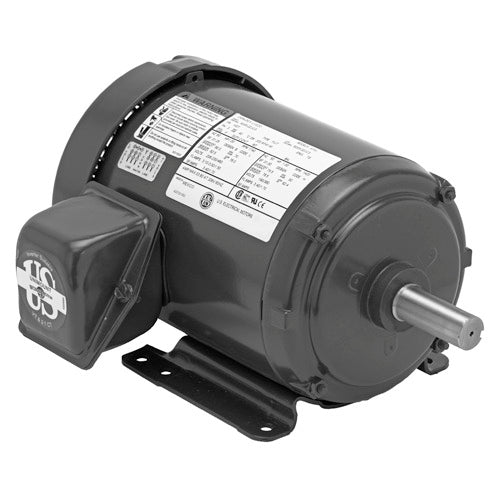

U.S. Motors U1P3D General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U1P3D is a general purpose three phase motor designed for tasks that require reliability and efficiency. This motor has a power output of one horsepower and operates at a speed of 1200 rpm. With a TEFC (Totally Enclosed Fan Cooled) enclosure, it provides protection in various environments, ensuring durability in demanding applications.

• Footed mounting design
• Voltage rating of 208-230/460 and 190/380
• Continuous duty with high efficiency

Product Highlights

This motor is suitable for general industrial equipment, including fans, compressors, and pumps. Its robust construction with rolled steel frame enhances its longevity and operational efficiency.

Product Information

Standard Information

• Motor Application: General Purpose
• Phase: Three Phase

Technical Specifications

• Power Rating: 1 hp
• RPM: 1200
• Voltage Rating: 208-230/460 & 190/380
• Service Factor: 1.25
• Efficiency: 82.5 %
• Enclosure Type: TEFC
• Frame Size: 145T
• Weight: 40.0 lb
