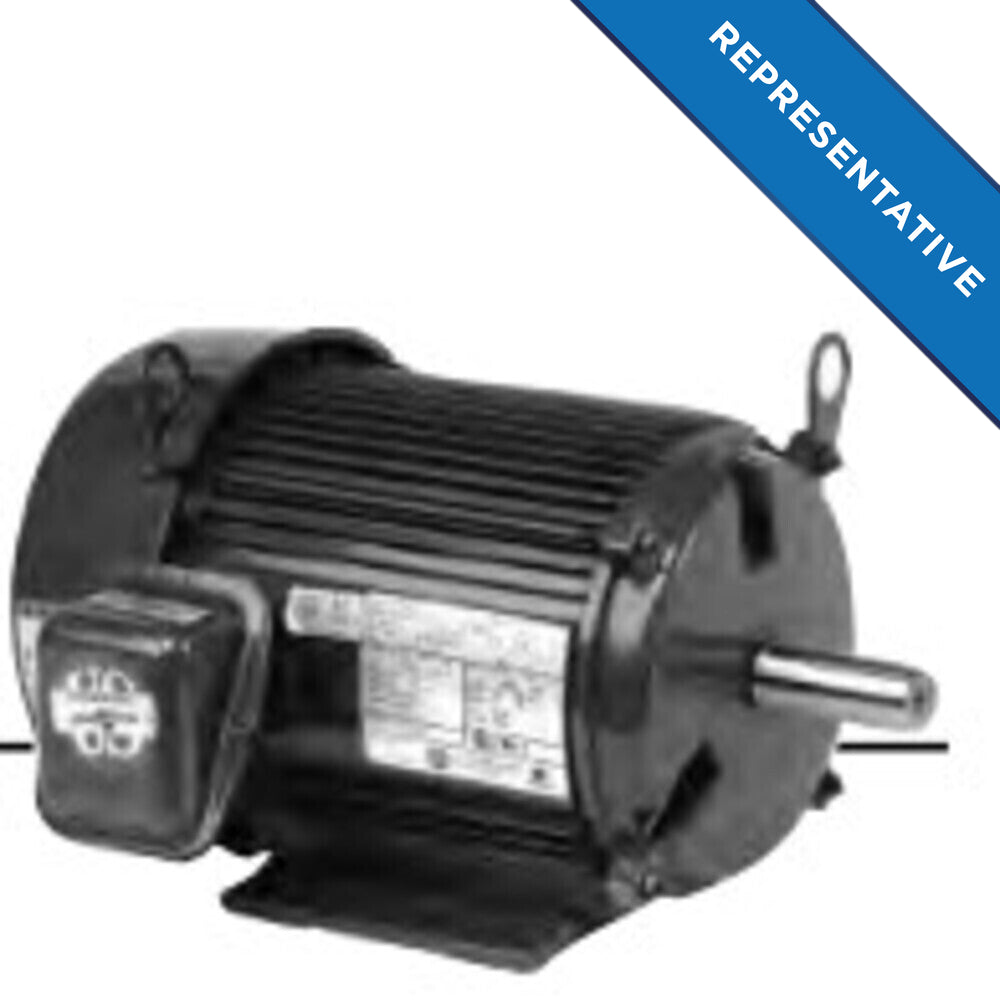

U.S. Motors U10R9C General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U10R9C is a general-purpose three-phase motor designed for heavy-duty applications. This TEFC (Totally Enclosed Fan Cooled) motor is well-suited for environments requiring durability and high performance. The U10R9C is ideal for various industrial applications.

• Rated at ten horsepower with RPM options of eighteen hundred or nine hundred.
• Operates at a voltage rating of four hundred sixty volts, making it suitable for commercial electrical systems.
• Designed for horizontal foot-mounted installation for easy integration into existing setups.

Product Highlights

The U10R9C features a robust aluminum frame and a service factor of one. It is optimized for continuous duty use in demanding environments.

Product Information

Standard Information

• Motor Application: General Purpose
• Frame Size: 256T

Technical Specifications

• Enclosure: Totally Enclosed, TEFC
• Full Load RPM: 1770 RPM
• Voltage Rating: 460
• C Dimension: 25.6 inches
• Weight: 226 pounds
• Service Factor: 1
• Full Load Amps: 12.7
• Efficiency: 84%
• Phase: Three Phase
• Duty: Continuous Duty
• Frame Material: Aluminum
