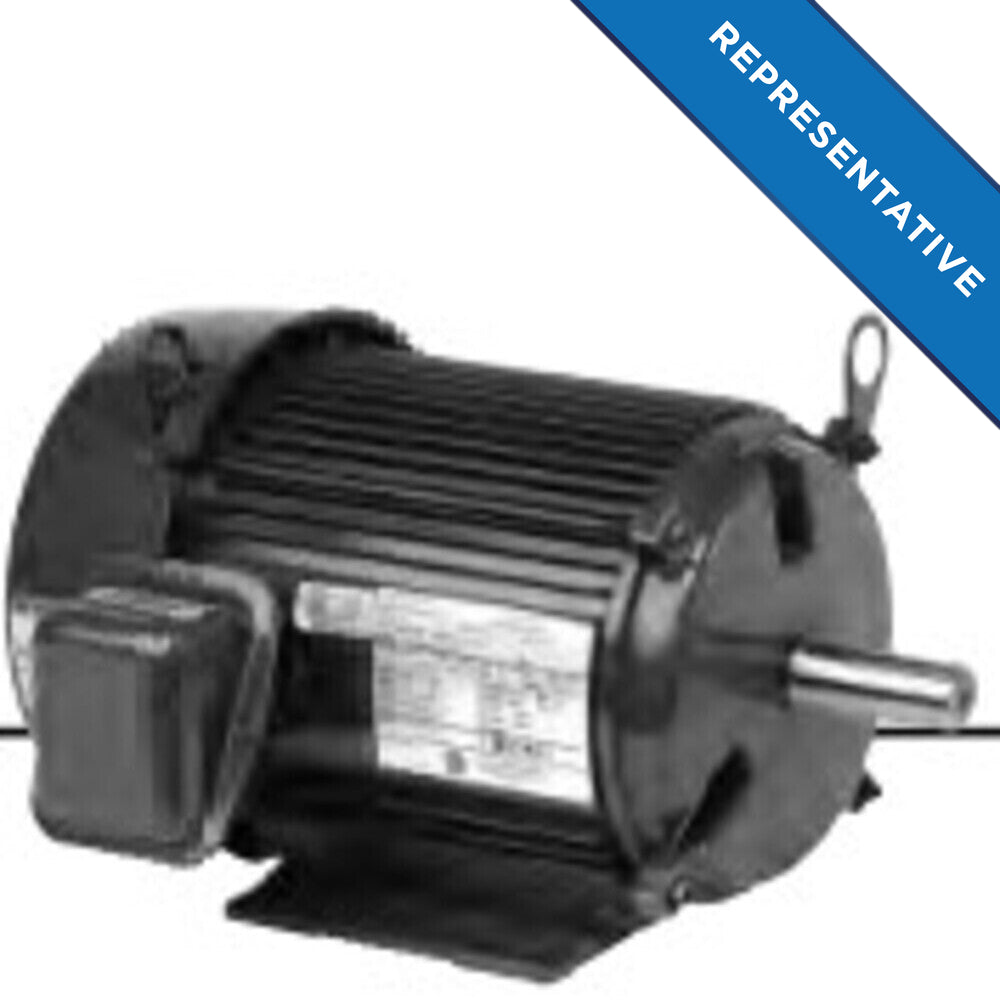

U.S. Motors U10P3H General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U10P3H is a general-purpose three-phase motor designed for various industrial applications. This motor features a ten horsepower capability and operates at twelve hundred revolutions per minute. It is engineered for durability and efficiency, making it suitable for tasks such as powering fans, blowers, compressors, and pumps.

• Ten horsepower rating.
• Robust TEFC enclosure for reliable performance.
• Horizontal footed mounting design for easy installation.

Product Highlights

This motor is built for continuous duty and offers high efficiency, featuring a service factor of 1.25 and full load efficiency of 91.7 percent.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 105532716

Technical Specifications

• Motor Application: General Purpose
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Frame: 256T
• Insulation: F
• Mounting: Horizontal - Footed
• Duty: Continuous Duty
• Phase: Three Phase
• Poles: 6
• Full Load Efficiency: 91.7%
• Service Factor: 1.25
• Full Load Amps: 28.2
• RPM: 1200
• Hz: 60
• Full Load RPM: 1180
• Frame Material: Aluminum
• C Dimension: 25.6 inches
• Voltage Rating: 200
• Weight: 250.0 LB
• EAN or UPC: 786382088408
