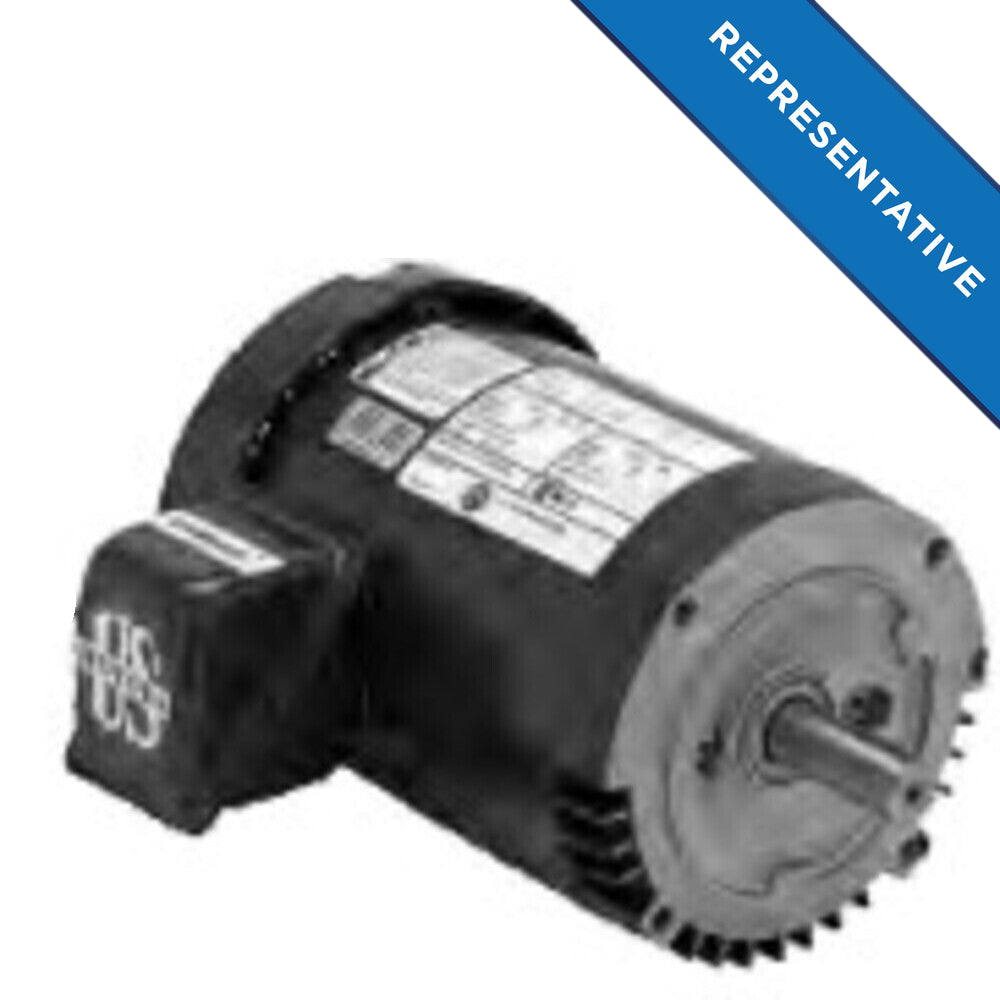

U.S. Motors U10P3DC General Purpose Three Phase, TEFC Unimount NEMA Premium Efficient - IE3 C-Face Footed Motor

Product Description

The U.S. Motors U10P3DC is designed for general purpose use. This three-phase motor offers a premium efficiency IE3 rating, making it suitable for various industrial applications.

• Motor power: ten horsepower
• Speed: twelve hundred revolutions per minute
• Voltage ratings: two hundred eight to two hundred thirty volts and four hundred sixty volts

Product Highlights

The U10P3DC features a totally enclosed fan cooled (TEFC) design, ensuring durability in challenging environments. Ideal for pumps, fans, and compressors, it operates efficiently under continuous duty.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U10P3DC

Technical Specifications

• Motor Application: General Purpose
• Full Load Efficiency: 91.7%
• Full Load RPM: 1,200 RPM
• Voltage Rating: 208-230/460
• Frequency: 50/60 Hz
• Enclosure: TEFC
• Frame: 256TC
• Duty: Continuous Duty
• Service Factor: 1.25
• Weight: 250.0 LB
