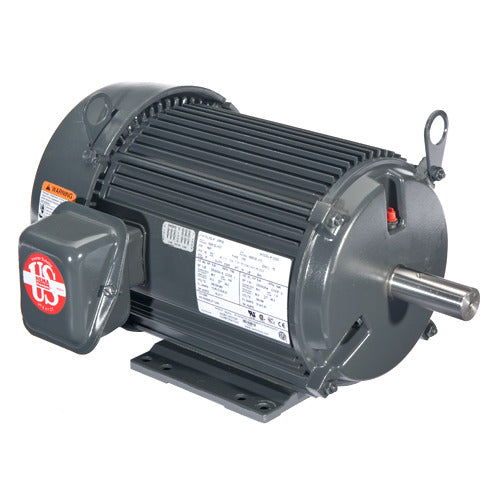

U.S. Motors U10P3D General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U10P3D is a general-purpose motor designed for various industrial applications. This three-phase motor offers a reliable performance with a power output of ten horsepower. The motor operates at a speed of one thousand two hundred revolutions per minute (RPM) and can handle both fifty and sixty hertz frequency. The motor is ideal for powering equipment such as fans, blowers, compressors, and pumps.

• Full load efficiency: 91.7%
• Voltage rating: 208-230/460 & 190/380
• TEFC enclosure for reliable operation

Product Highlights

This motor provides continuous duty operation and features an aluminum frame material. It supports horizontal footed mounting, allowing easy installation in various setups.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U10P3D

Technical Specifications

• Full Load Efficiency: 91.7%
• Frequency: 50/60 Hz
• Motor Application: General Purpose
• RPM: 1200
• Voltage Rating: 208-230/460 & 190/380
• Poles: 6
• Phase: Three Phase
• Frame Material: Aluminum
• Full Load RPM: 975 RPM, 1180 RPM
• Enclosure: TEFC
• Insulation: F
• Frame: 256T
• Mounting: Horizontal - Footed
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Full Load Amps: 27.1-24.6/12.3
• Duty: Continuous Duty
• Weight: 250.0 LB
• EAN or UPC: 786382088316
