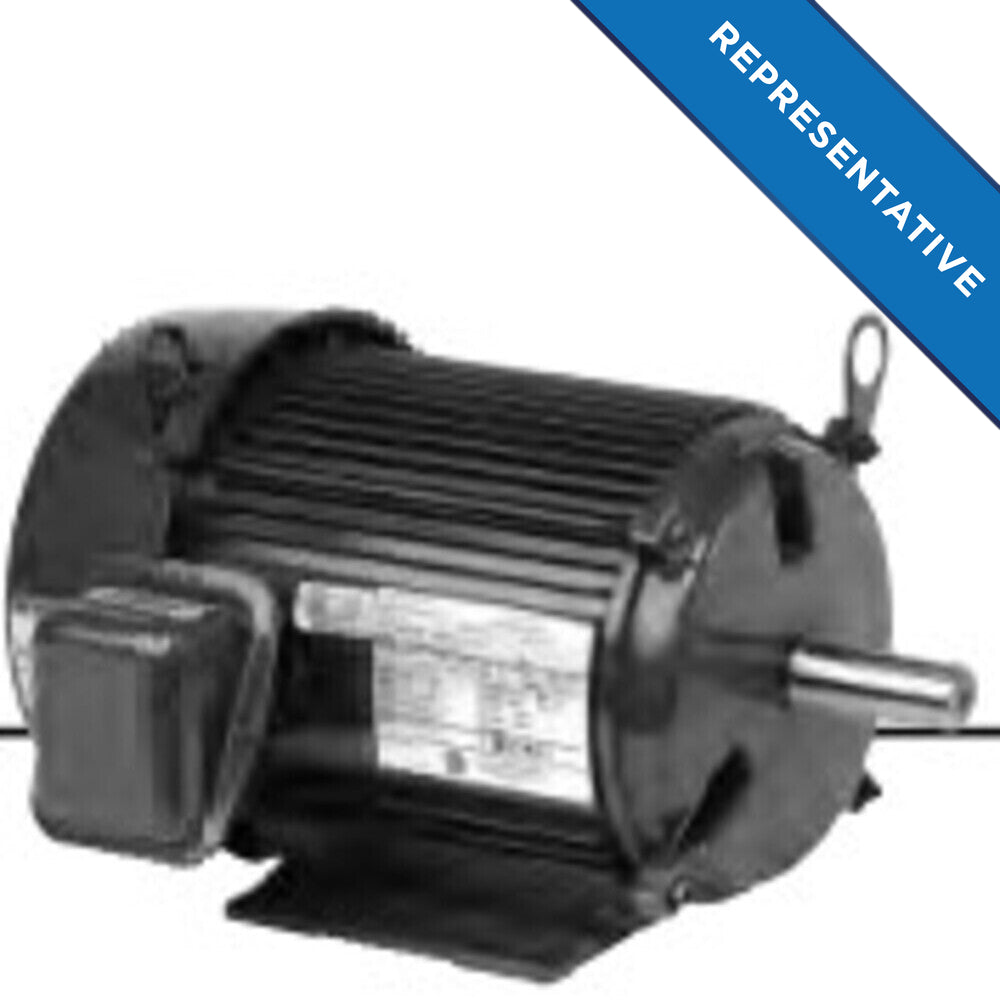

U.S. Motors U10P1H General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U10P1H is a general-purpose motor designed for various industrial applications. It features a powerful ten horsepower rating and operates at three thousand six hundred RPM. This motor functions on three-phase electrical systems with a voltage rating of two hundred. It is built for horizontal footed mounting, ensuring stability and durability in multiple settings.

• Powerful ten horsepower
• Designed for three-phase systems
• TEFC enclosure for reliable operation

Product Highlights

The U10P1H motor is ideal for industrial equipment such as fans, blowers, and pumps.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U10P1H

Technical Specifications

• Motor Application: General Purpose
• Insulation: F
• Duty: Continuous Duty
• Mounting: Horizontal - Footed
• Hz: 60 Hz
• Frame Material: Aluminum
• Full Load Efficiency: 90.2 %
• Enclosure: TEFC
• Phase: Three Phase
• RPM: 3600 rpm
• Frame: 215T
• Full Load Amps: 27
• Weight: 125.0 LB
