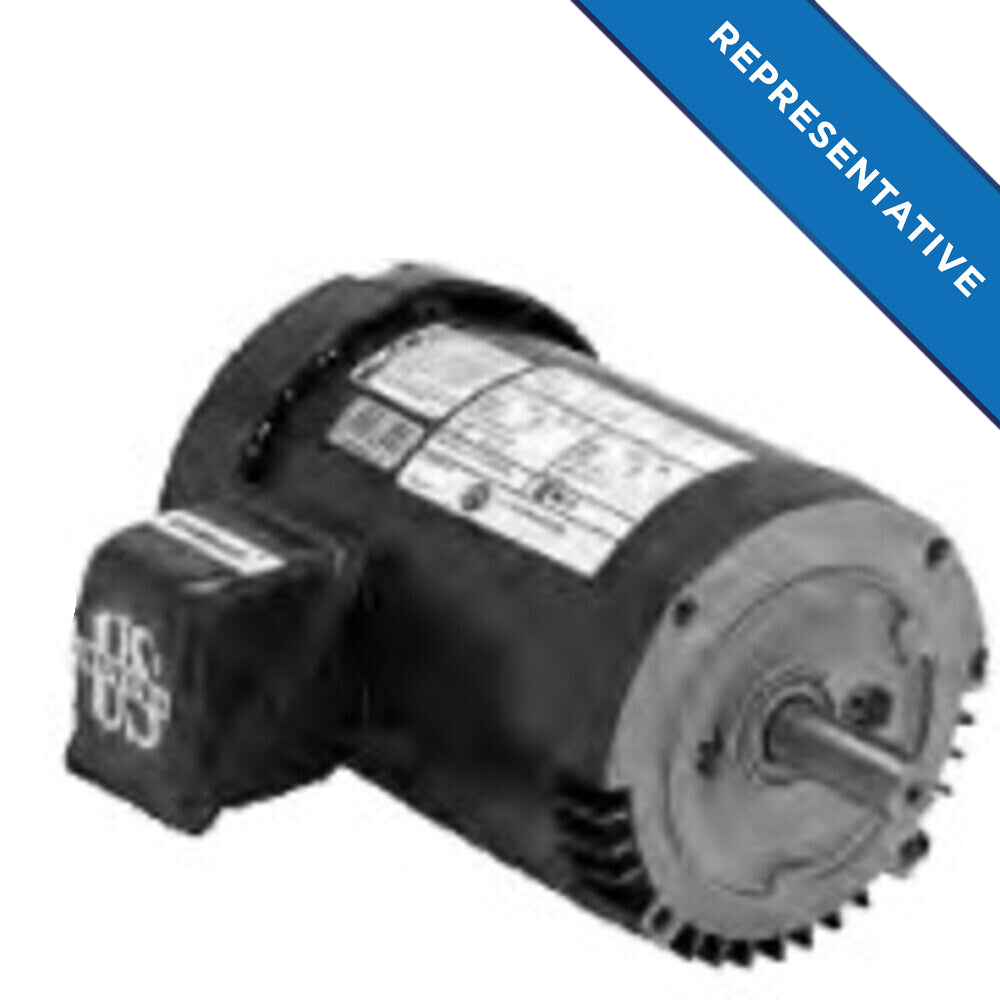

U.S. Motors U10P1GC General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U10P1GC is a general purpose three-phase motor designed for various industrial applications. This motor operates efficiently at 10 horsepower and a speed of 3600 rpm. It features a totally enclosed fan cooled (TEFC) design and a horizontal footed mounting structure, making it suitable for tasks requiring durability and reliability.

• General purpose three-phase motor
• Can be used in a wide range of industrial applications
• TEFC for protection against environmental factors

Product Highlights

This motor is ideal for use in applications like fans, blowers, and compressors.

Product Information

Standard Information

• Brand: U.S. Motors
• Min Order Quantity: Not applicable

Technical Specifications

• Phase: Three Phase
• RPM: 3600 rpm
• Voltage Rating: 575 volts
• Full Load Amps: 9.4
• Enclosure: TEFC
• Frame Size: 215TC
• Full Load Efficiency: 91.7%
• Duty Type: Continuous Duty
• Insulation Class: F
• Weight: 125 pounds
