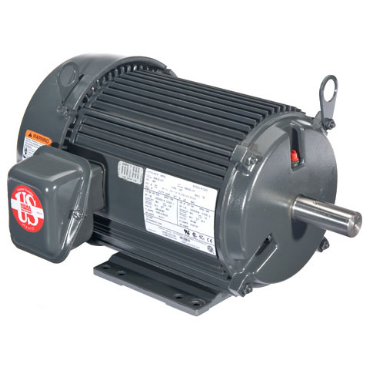

U.S. Motors U10P1D General Purpose Three Phase TEFC Unimount NEMA Premium Efficient - IE3 Motor

Product Description

The U.S. Motors U10P1D is a general-purpose motor designed for various industrial applications. It operates at ten horsepower and has a rated speed of three thousand six hundred RPM. This three-phase motor is efficient and suitable for use in systems that require a reliable power source. It includes a TEFC enclosure, ensuring durability and protection from environmental factors.

• Applications for fans, blowers, compressors, and pumps
• Designed for continuous duty operation
• Features a dual voltage rating

Product Highlights

This motor is specifically designed for efficient operation in general industrial equipment. It has a premium efficiency rating and is suitable for a wide range of applications.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U10P1D

Technical Specifications

• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Efficiency Group: Premium Efficient
• Frame Material: Aluminum
• C Dimension: 20.1 inches
• Duty: Continuous Duty
• Full Load RPM: 3520 RPM
• Motor Application: General Purpose
• Phase: Three Phase
• Mounting: Horizontal - Footed
• Voltage Rating: 208-230/460
• Full Load Efficiency: 91%
• Service Factor: 1.25
• Insulation: F
• Full Load Amps: 26.4-23.5/11.8
• Poles: 2
• Dimensions: 215T Frame
• Weight: 129.89 LB
• EAN or UPC: 786382041649
