U.S. Motors TS607 Definite Purpose Single Phase ODP Thru Bolt Motor

Product Description

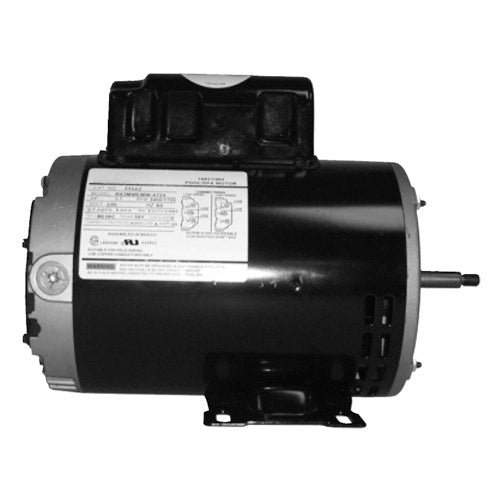

The U.S. Motors TS607 is a definite purpose single phase ODP thru bolt motor designed for efficient operation. It is suitable for various applications, including pump operations, and delivers a powerful output with a five horsepower rating. With a speed of three thousand six hundred revolutions per minute, this motor operates at sixty hertz and features a two-pole design for reliable performance.

• Five horsepower motor
• Designed for continuous duty
• ODP enclosure type

Product Highlights

This motor features automatic reset thermal protection for safety and durability in demanding environments. Its lightweight design facilitates easy installation.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 101941397

Technical Specifications

• Duty: Continuous Duty
• Enclosure Designation: ODP - Open Drip Proof
• Frame: 56, 56Y
• Voltage Rating: 230
• Full Load Amps: 19.4
• RPM: 3600
• Thermal Protection: Automatic Reset
• Weight: 48.0 LB
