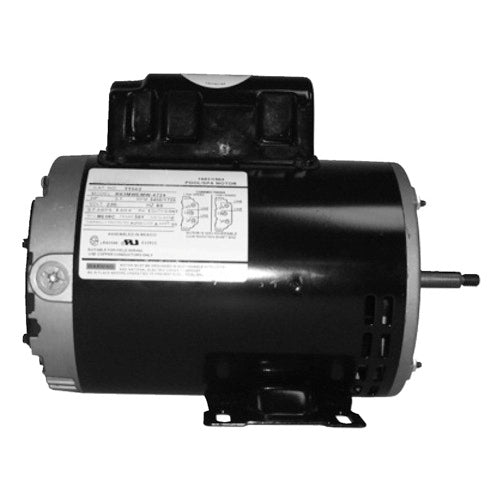

U.S. Motors TS604 Definite Purpose Single Phase ODP Thru Bolt w/Base Motor

Product Description

The U.S. Motors TS604 is a definite purpose motor designed for various applications that require reliable and efficient operation. This single-phase motor operates at a power of two and a half horsepower and reaches a speed of three thousand six hundred revolutions per minute. Its open drip proof (ODP) design ensures that it can function effectively in various environments while being mounted easily with a thru bolt and base configuration.

• Power Rating: 2.5 horsepower
• Single Phase Operation: 3600 RPM
• Voltage Rating: 230 volts

Product Highlights

This motor is ideal for pump applications and other definite purpose uses. Its design features and specifications allow for continuous operation and effective cooling.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: TS604

Technical Specifications

• Full Load RPM: 3450 RPM
• Frame Size: 56
• Phase: Single Phase
• Service Factor: 1
• Duty Type: Continuous Duty
• Thermal Protection: Automatic Reset
• Weight: 32.0 LB
• Inlet Voltage: 230 volts
