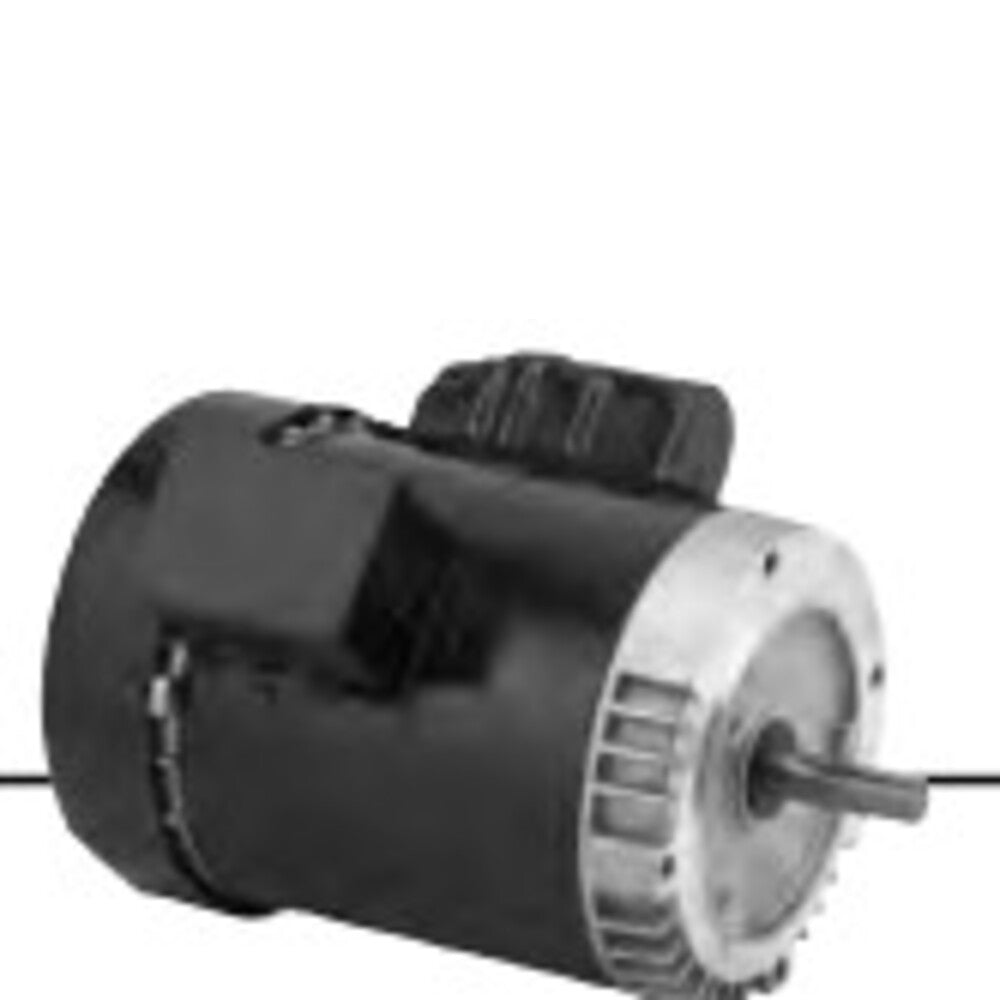

U.S. Motors T5C1K18C General Purpose Single Phase TEFC Motor

Product Description

The U.S. Motors T5C1K18C is a five horsepower general purpose single phase TEFC motor designed for versatile application. With a speed of three thousand six hundred RPM, it operates efficiently at a voltage rating of two hundred thirty. The TEFC enclosure ensures reliable performance in various environments.

• 5 HP power rating
• TEFC enclosure for protection
• Ideal for general purpose applications

Product Highlights

The T5C1K18C motor is engineered for continuous duty applications and features a rolled steel frame construction.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T5C1K18C

Technical Specifications

• Phase: Single Phase
• Enclosure Type: TEFC
• Poles: 2
• RPM: 3600
• Full Load RPM: 3505
• Frame Size: 184TC
• Full Load Amps: 19.6
• Frequency: 60 Hz
• Efficiency: 83%
• Weight: 91 lbs
• Insulation Class: F
• EAN/UPC: 786382131395
