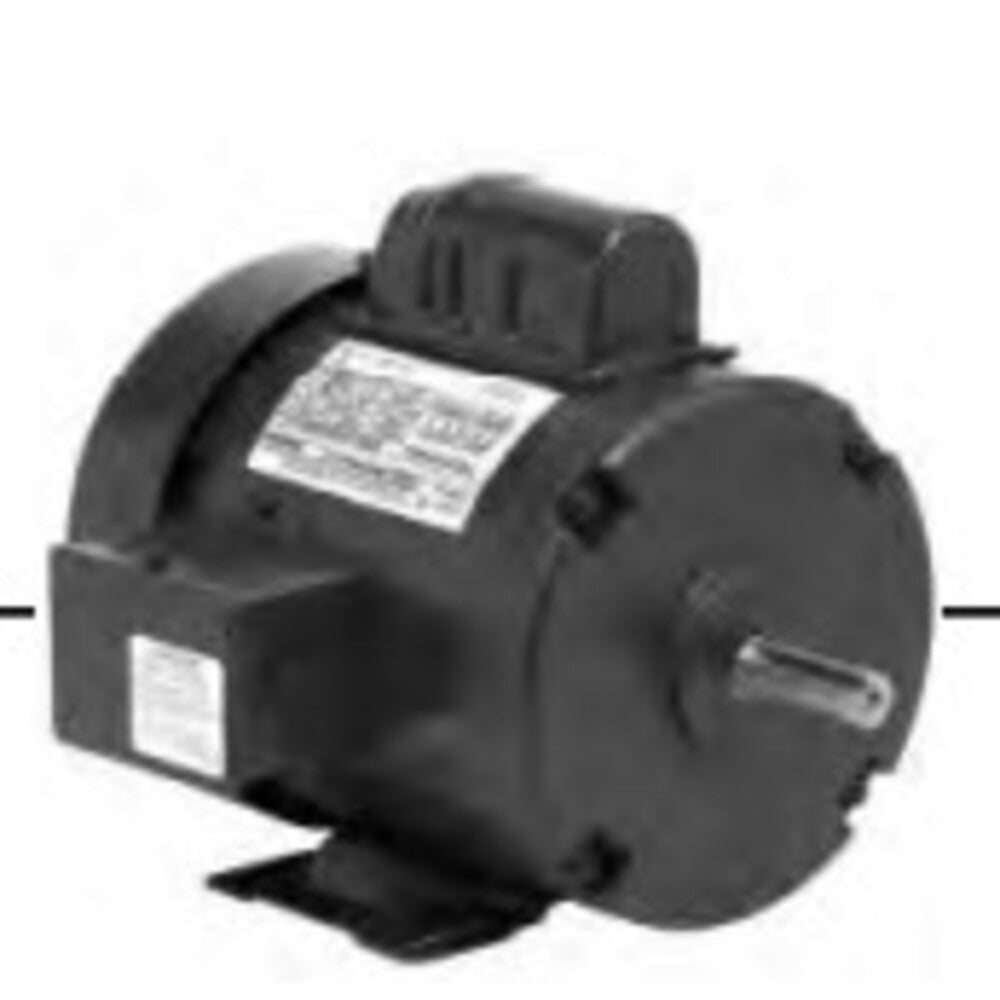

U.S. Motors T34CA1J General Purpose Single Phase TEFC Rigid Base Motor

Product Description

The U.S. Motors T34CA1J is a general-purpose motor designed for reliable performance in various applications. This single-phase, totally enclosed, fan-cooled motor is built to handle a range of tasks effectively. It operates at three-fourths of a horse power, has a speed of thirty-six hundred revolutions per minute, and is suitable for use with a voltage rating of one hundred fifteen or two hundred eight to two hundred thirty volts.

• Three-fourths hp motor that operates at three thousand six hundred rpm
• Rigid base design for easy installation
• Suitable for various general-purpose applications

Product Highlights

This motor is ideal for HVAC systems, pumps, and compressors. Its robust build and efficient operation help ensure lasting performance in demanding environments.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 102134313

Technical Specifications

• Mounting: Rigid Base
• HP: 3/4
• Phase: Single Phase
• Frame: 56
• Duty: Continuous Duty
• RPM: 3600
• Full Load RPM: 3450
• Service Factor: 1.15
• C Dimension: 11.8 inches
• Voltage Rating: 115/208-230
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Insulation: Class B
• Hz: 60
• Poles: 2
• Full Load Amps: 10.4/5.3-5.2
• Motor Application: General Purpose
• Full Load Efficiency: 67.8%
• Thermal Protection: Automatic Reset
• Weight: 26.0 LB
• EAN or UPC: 786382076368
