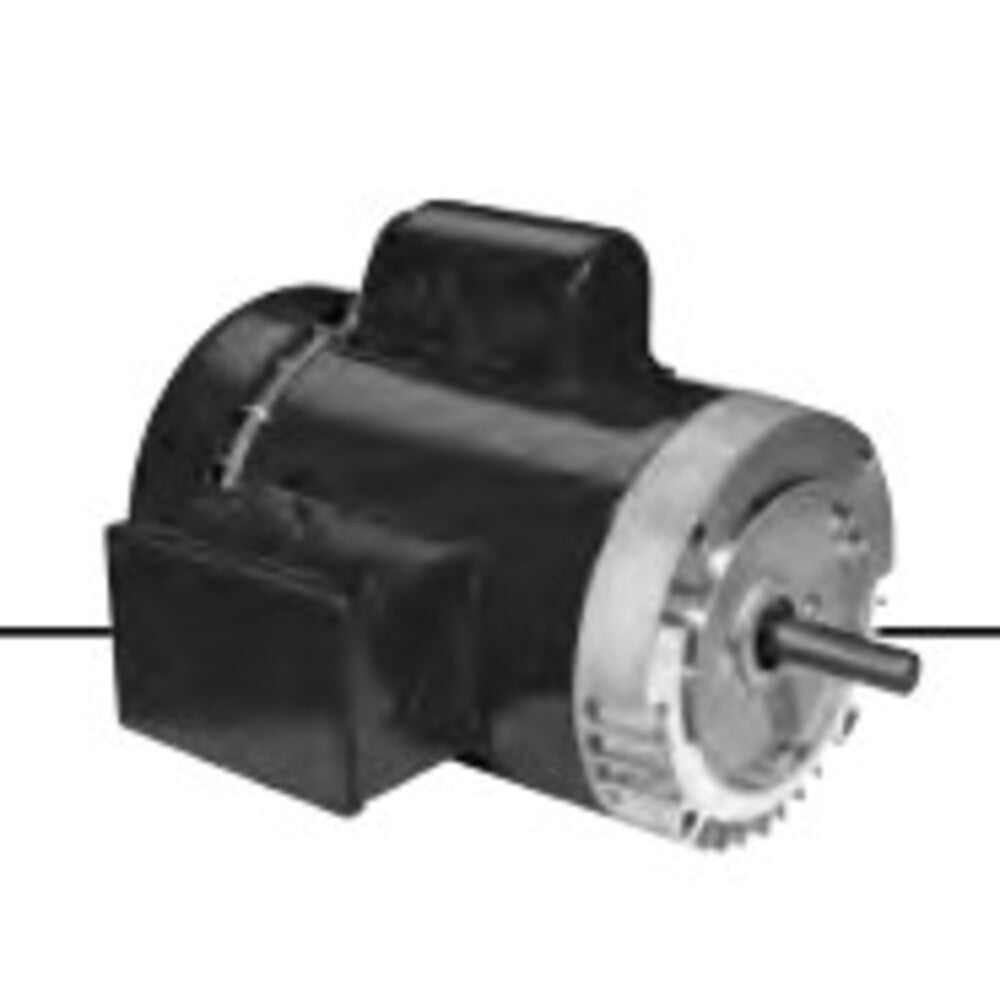

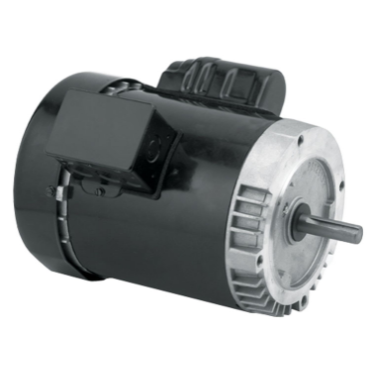

U.S. Motors T34C3JCR General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors T34C3JCR is a general purpose single phase motor designed for various applications requiring reliable performance and energy efficiency. This motor operates at three-fourths horsepower and provides a speed of twelve hundred RPM. With a voltage rating of 115/208-230, it is well-suited for residential and light commercial use.

• Voltage rating: 115/208-230
• Enclosure type: Totally Enclosed Fan Cooled (TEFC)
• Continuous duty service for sustainable operation

Product Highlights

This motor is specifically designed to meet the demands of various applications, showcasing strong performance, versatility, and solid construction.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T34C3JCR

Technical Specifications

• HP: 3/4
• Frame: 56C
• RPM: 1200
• Phase: Single
• Full Load Amps: 10.6/5.4-5.3
• Insulation Class: B
• C Dimension: 13.3 inches
• Duty: Continuous Duty
