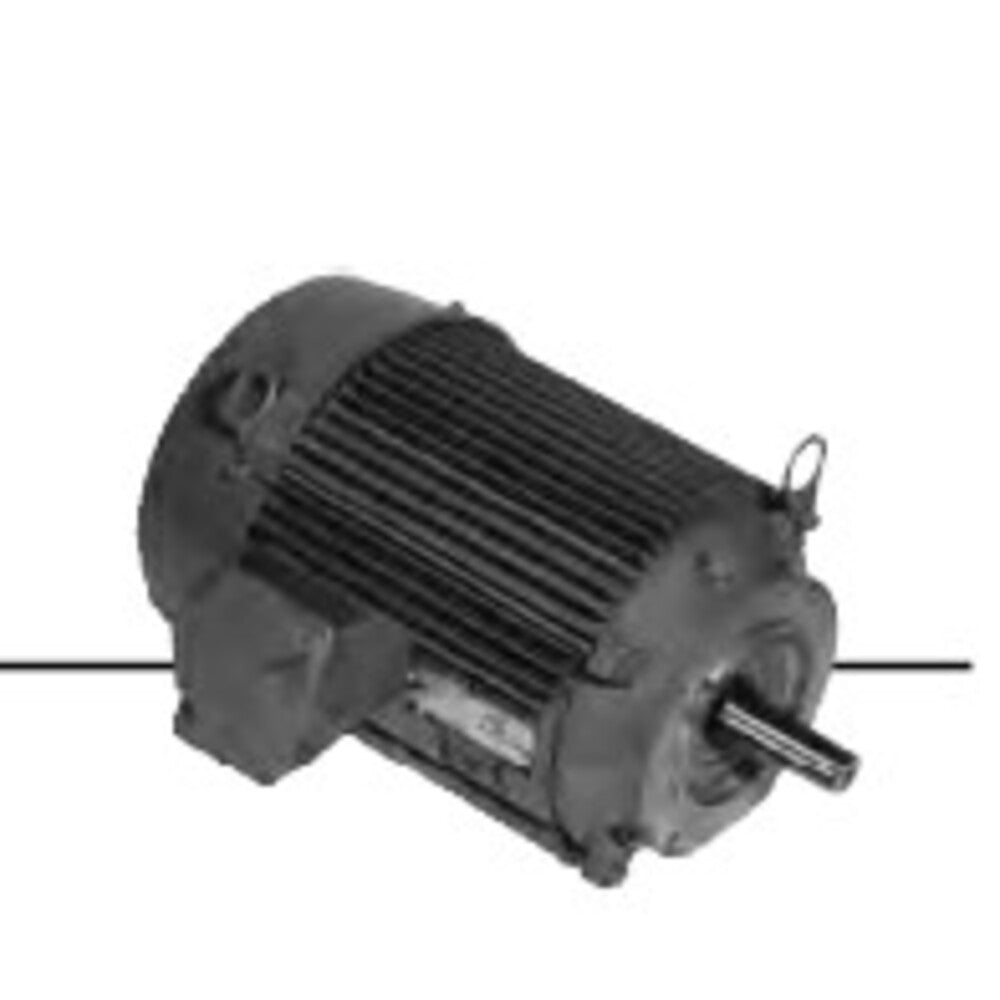

U.S. Motors T32P1ACR General Purpose Three Phase TEFC C-Face Motor

Product Description

The U.S. Motors T32P1ACR is a general purpose three phase TEFC C-face motor designed for a wide range of industrial applications. With a power rating of one and a half horsepower and a speed of three thousand six hundred rpm, this motor is well-suited for fans, blowers, compressors, and pumps.

• TEFC enclosure for protection against dust and moisture
• Voltage rating of two hundred eight to two hundred thirty/ four hundred sixty
• C-Face mount for easy installation

Product Highlights

This motor offers reliable performance in continuous duty applications. It has a full load efficiency of eighty-four percent and a service factor of one point fifteen, making it an efficient choice for various industrial needs.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T32P1ACR

Technical Specifications

• Enclosure: TEFC
• Voltage Rating: 208-230/460
• Full Load Efficiency: 84%
• Service Factor: 1.15
• Duty: Continuous Duty
• Full Load RPM: 3450
• Mounting: C-Face
• Frame: 56C
• Weight: 32 LB
• Insulation: B
• Poles: 2
• Phase: Three Phase
