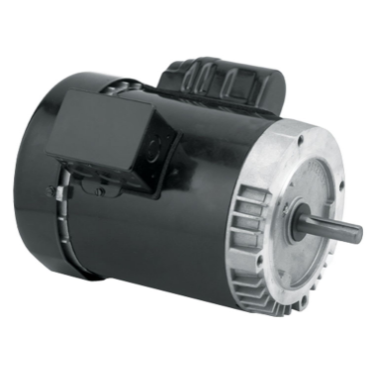

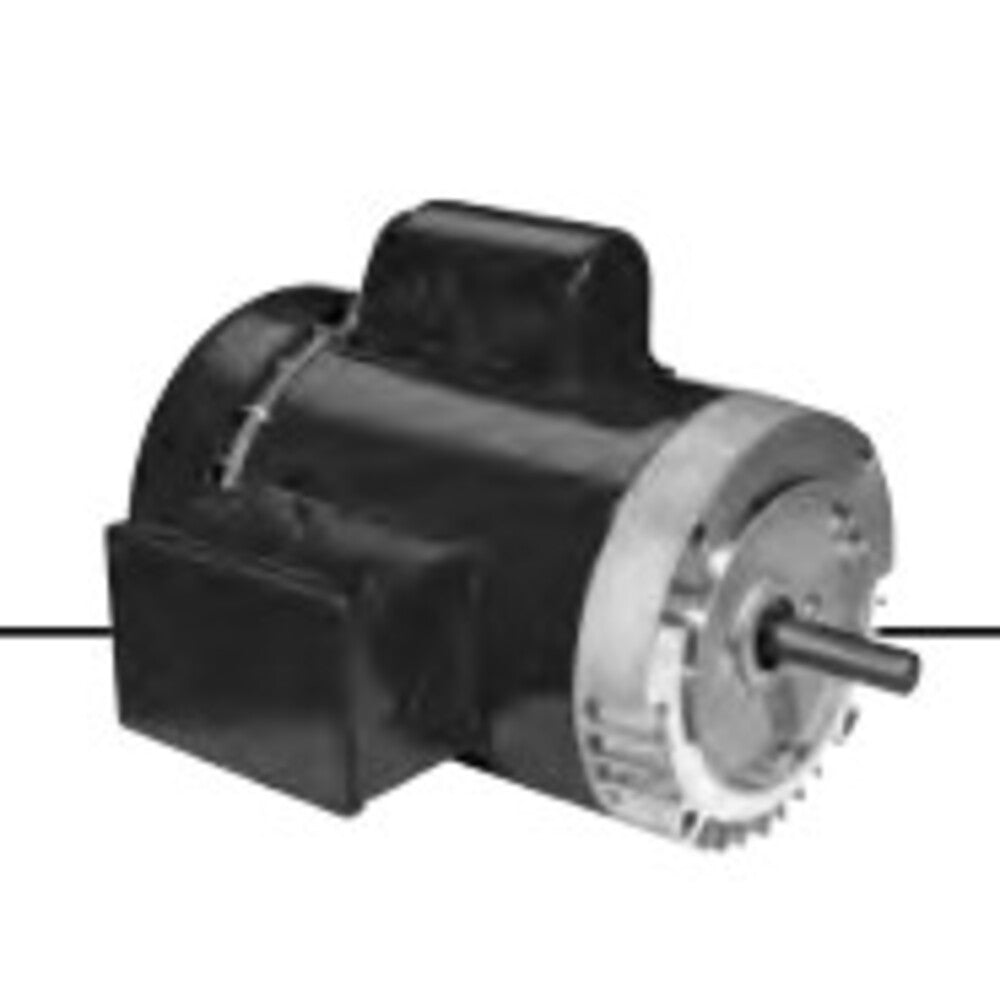

U.S. Motors T32CM2JCR General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors T32CM2JCR is a general-purpose single-phase motor designed for various applications. It features a TEFC (Totally Enclosed Fan Cooled) enclosure, which protects the motor from dust and moisture. This motor operates efficiently at an output of one and a half horsepower with an RPM rating of eighteen hundred.

• Suitable for continuous duty applications.
• Voltage ratings of one hundred fifteen, two hundred eight, and two hundred thirty volts.
• Includes manual reset thermal protection.

Product Highlights

The T32CM2JCR is suitable for use in HVAC systems, pumps, and various industrial machinery. Its robust construction and reliable performance make it a choice for many professionals.

Product Information

Standard Information

• Mounting: C-Face
• Duty: Continuous Duty

Technical Specifications

• HP: 1.5
• RPM: 1800
• Frame: 56C
• Insulation Class: B
• Service Factor: 1.15
• Efficiency: 80%
• Full Load Amps: 14.4/8-7.2
• Thermal Protection: Manual Reset
