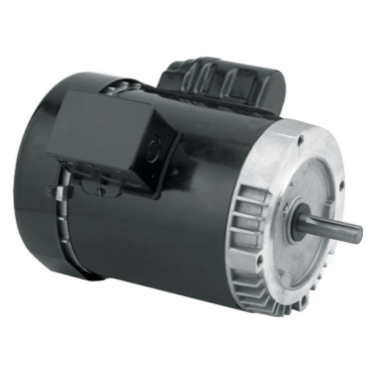

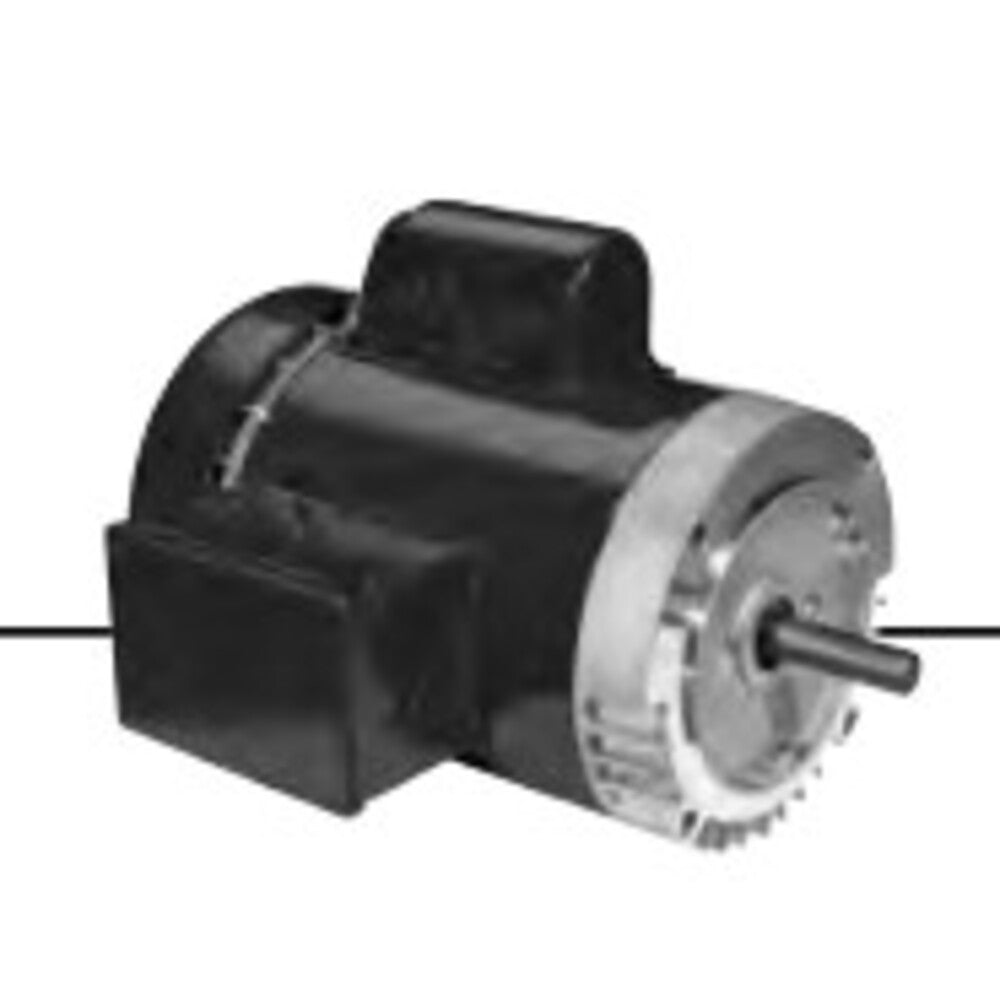

U.S. Motors T32CA2JCR General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors T32CA2JCR is a general-purpose single-phase TEFC C-face motor. This motor is designed for various applications requiring reliable and efficient performance.

• Power: 1 1/2 hp
• Speed: 1800 rpm
• Voltage Rating: 115/208-230 volts

Product Highlights

This motor operates at 60 Hz with a continuous duty cycle, making it suitable for demanding environments. It features a C-face mount and an automatic reset thermal protection mechanism.

Product Information

Standard Information

• Motor Type: General Purpose
• Enclosure Type: TEFC

Technical Specifications

• HP: 1 1/2
• RPM: 1800
• Frame Size: 56C
• Phase: Single Phase
• Poles: 4
• Service Factor: 1.15
• Full Load Amps: 14.4/8-7.2
• Full Load Efficiency: 80%
