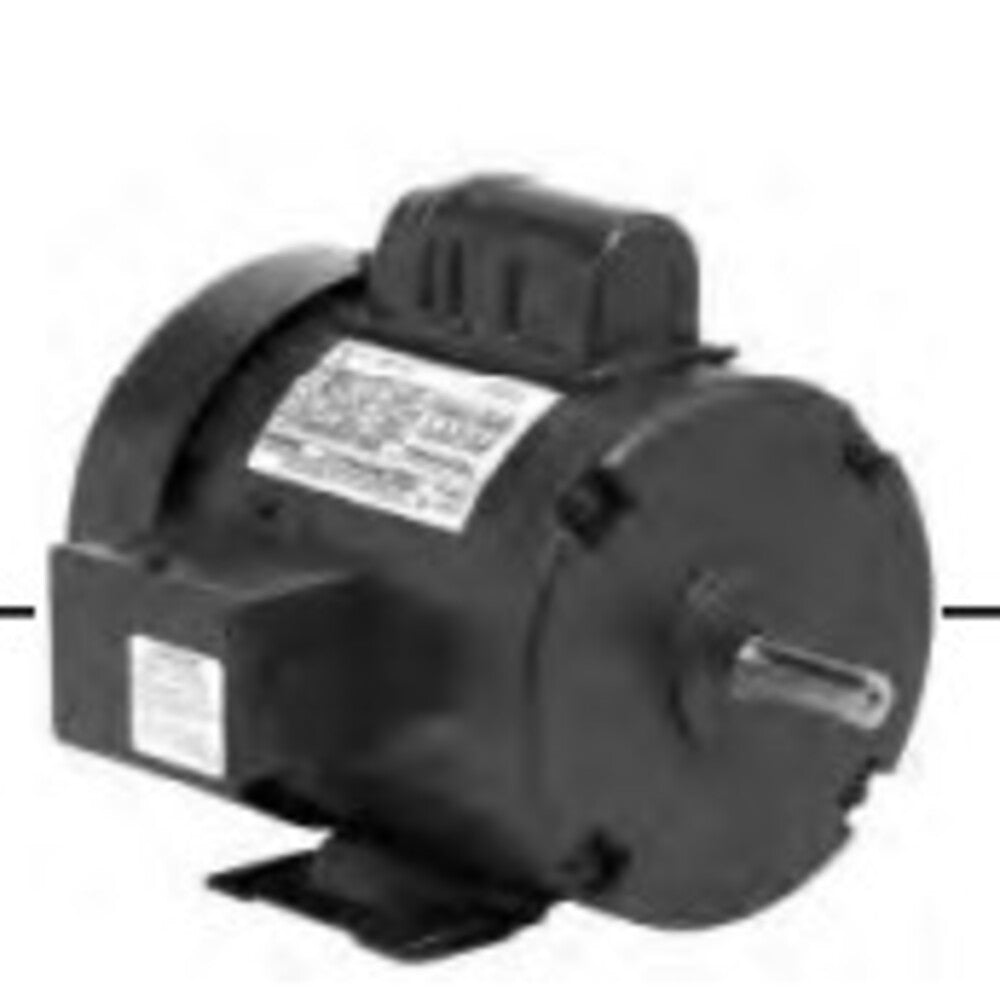

U.S. Motors T32CA2J14 General Purpose Single Phase TEFC Rigid Base Motor

Product Description

The U.S. Motors T32CA2J14 is a general purpose motor designed for single phase applications. This TEFC (Totally Enclosed Fan Cooled) motor is built to perform efficiently in various environments. It features a rigid base mount, making it suitable for many different setups.

• Powerful 1 1/2 horsepower rating
• Operates at 1800 rpm for reliable performance
• Flexible voltage options of 115/208-230 volts

Product Highlights

This motor is commonly used in HVAC and industrial applications. Its robust design ensures durability and longevity. Ideal for professionals needing reliable performance in motor applications.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T32CA2J14

Technical Specifications

• Mounting: Rigid Base
• Insulation: B
• C Dimension: 14.2 inches
• Frame: 145T, 145
• Motor Application: General Purpose
• Phase: Single Phase
• HP: 1 1/2
• Full Load RPM: 1725 rpm
• Full Load Efficiency: 80%
• Thermal Protection: Automatic Reset
• RPM: 1800 rpm
• Hz: 60 Hz
• Duty: Continuous Duty
• Enclosure: TEFC
• Poles: 4
• Design: L
• Service Factor: 1.15
• Voltage Rating: 115/208-230, 230, 115, 208
• Full Load Amps: 14.4/8-7.2
• Weight: 40.0 lbs
• EAN or UPC: 786382070670
