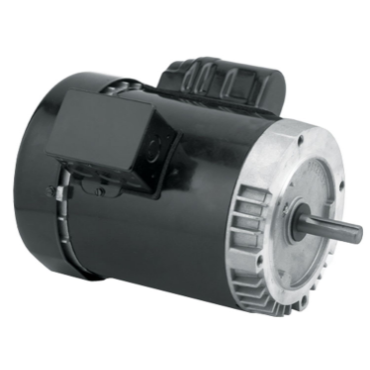

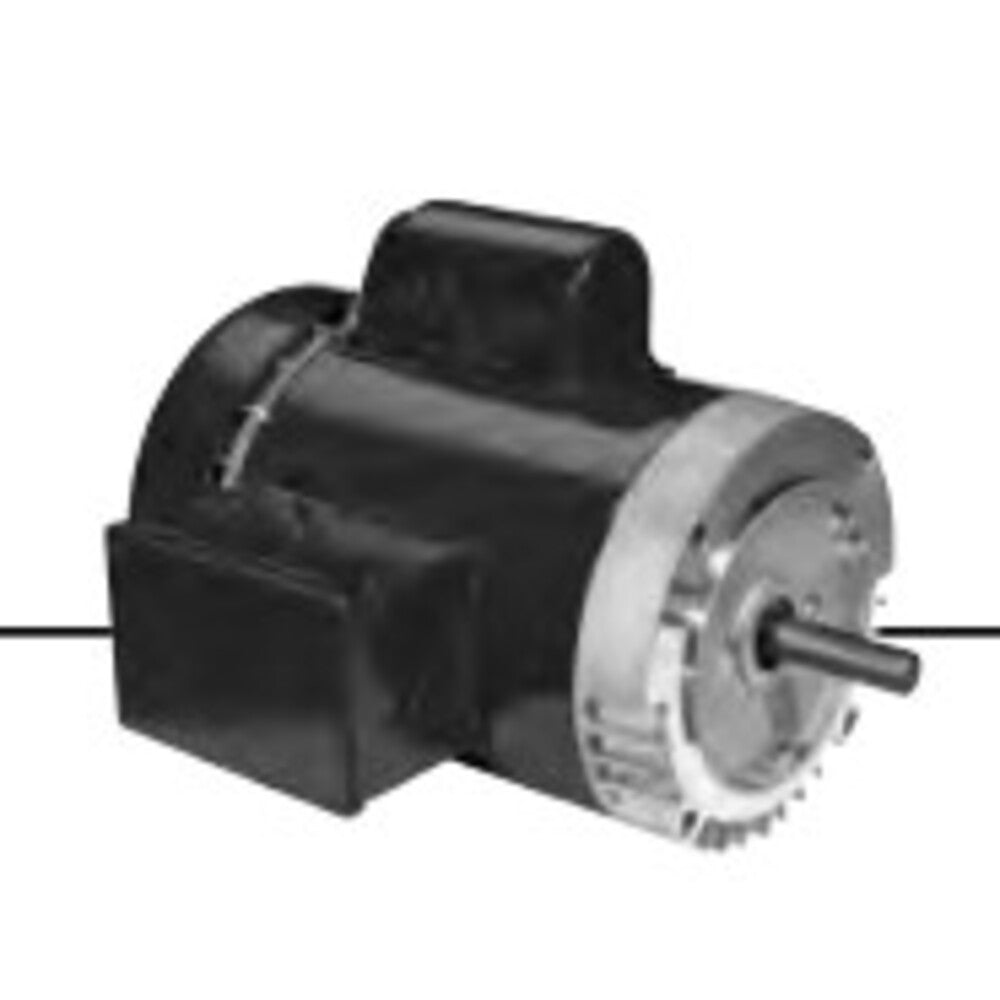

U.S. Motors T32CA1JCR General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors T32CA1JCR is a general-purpose single-phase motor designed for various applications. This motor features a TEFC design and operates at a voltage rating of 115/208-230. With a power output of one and a half horsepower and a full load speed of 3600 RPM, this motor is suitable for tasks requiring reliability and efficiency.

• Power Output: 1.5 HP
• Full Load Speed: 3600 RPM
• Frame Size: 56C

Product Highlights

This motor is ideal for HVAC applications and other industrial uses.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T32CA1JCR

Technical Specifications

• Voltage Rating: 115/208-230
• Duty: Continuous Duty
• Design: L
• Frame: 56C
• Service Factor: 1.15
• Full Load RPM: 3450
• Poles: 2
• C Dimension: 12.8 in
• Frequency: 60 Hz
• Full Load Amps: 14.6/8.1-7.4
• Mounting: C-Face - Less Base, C-Face
• Enclosure: TEFC
• Insulation Class: B
• Full Load Efficiency: 78.5%
• Thermal Protection: Automatic Reset
• Weight: 32.0 LB
• UPC: 786382069544
