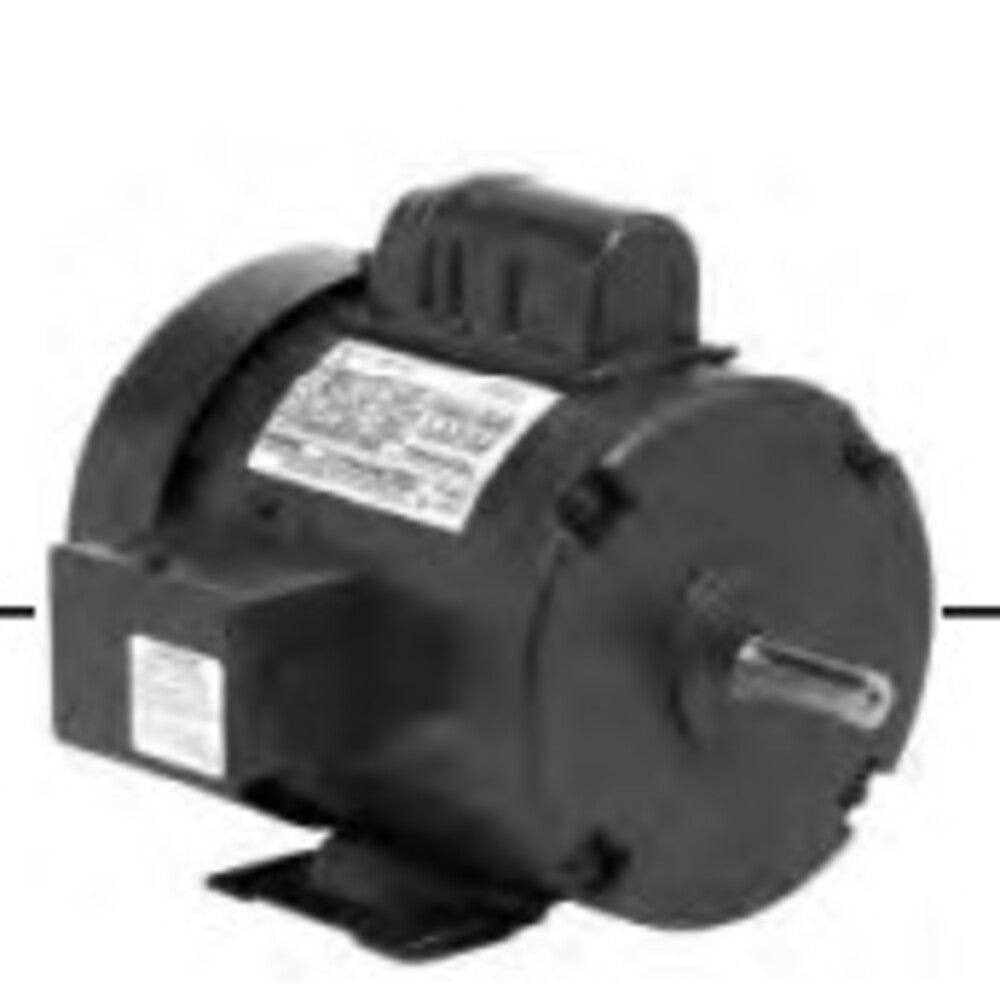

US-Nidec T32C1JH General Purpose Motor 1 1/2 HP 3600 RPM

Product Description

The US-Nidec T32C1JH is a general-purpose motor designed for a variety of applications. This motor offers a power rating of one and a half horsepower (1 1/2 HP) with a rotational speed of three thousand six hundred revolutions per minute (3600 RPM). The frame size is 56H with a diameter of six and a half inches (6.5 inches). It features a total enclosure, fan-cooled (TEFC) design, suitable for single-phase operation at voltages of one hundred fifteen to two hundred thirty volts (115/208-230).

• Electrical type: Capacitor start
• Overload protection: None
• Mounting type: Rigid base

Product Highlights

This motor is ideal for HVAC and plumbing applications, providing reliable operation in various environments.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: T32C1JH

Technical Specifications

• HP: 1 1/2
• RPM: 3600
• Frame: 56H
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Single
• Voltage: 115/208-230
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Amperage: 14.6/8.1-7.4
• Shaft Type: Single
• Efficiency: 78.50%
• Service Factor: 1.15
• Insulation Class: B
