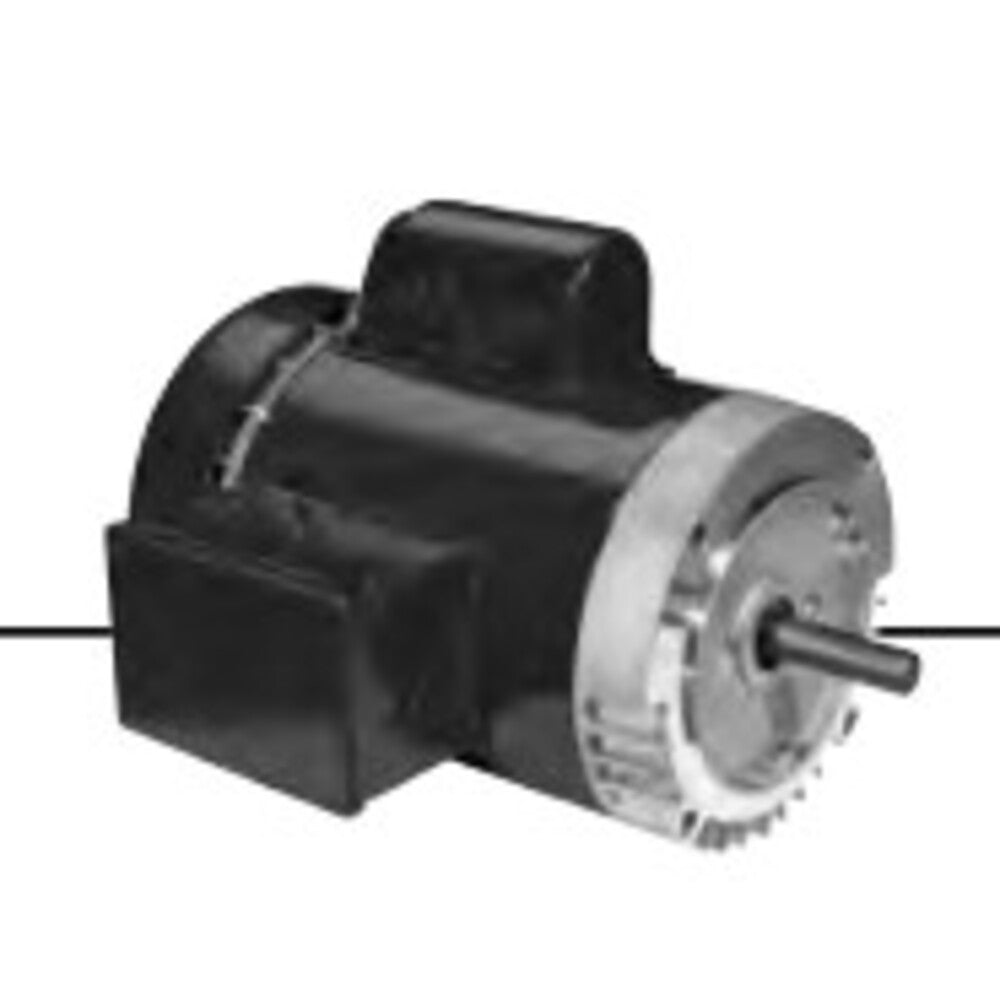

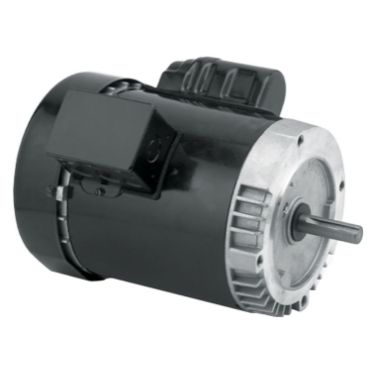

U.S. Motors T32C1J14CR General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors T32C1J14CR is a general purpose motor designed for single-phase applications. This motor runs at a speed of three thousand six hundred rotations per minute and offers a power output of one and a half horsepower. It features a totally enclosed fan cooled design (TEFC), providing protection from dust and moisture. The motor's C-face mounting style allows for easy installation in various setups.

• Efficiency rating of 78.5 percent
• Continuous duty operation suitable for various applications
• Versatile voltage rating of 115/208-230 volts

Product Highlights

This motor is ideal for HVAC systems, pumps, fans, and other machinery needing reliable performance in tough environments.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: T32C1J14CR

Technical Specifications

• HP: 1 1/2
• RPM: 3600
• Phase: Single Phase
• Enclosure: TEFC
• Voltage Rating: 115/208-230
• Amperage: 14.6/8.1-7.4
• Frame Size: 143TC
• Weight: 32.0 LB
