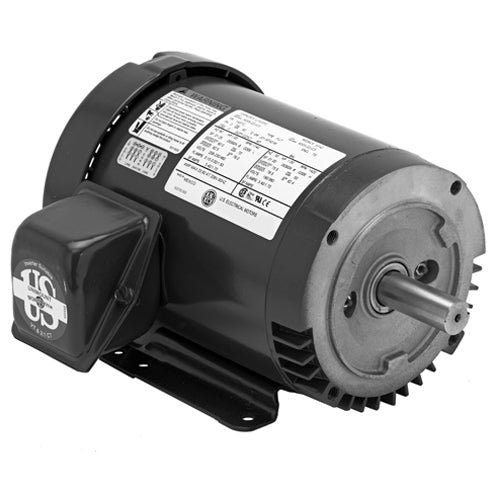

U.S. Motors T2P2AHZ General Purpose Three Phase TEFC Rigid Motor

Product Description

The U.S. Motors T2P2AHZ is a general purpose three-phase motor designed for various industrial applications. This motor operates at 2 horsepower with a speed rating of 1800 rpm, making it suitable for a range of uses in manufacturing and HVAC systems.

• Voltage: 208-230/460 volts
• TEFC enclosure for optimal protection
• Rigid mounting for secure installation

Product Highlights

This motor is built for continuous operation, offering durability and efficiency in demanding environments.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: T2P2AHZ

Technical Specifications

• Poles: 4
• Enclosure: TEFC
• Frame Size: 56HZ
• Full Load RPM: 1800 rpm
• Full Load Amps: 6.2-6/3
• Service Factor: 1.25
• Efficiency: 86.5%
• Weight: 41.74 pounds
