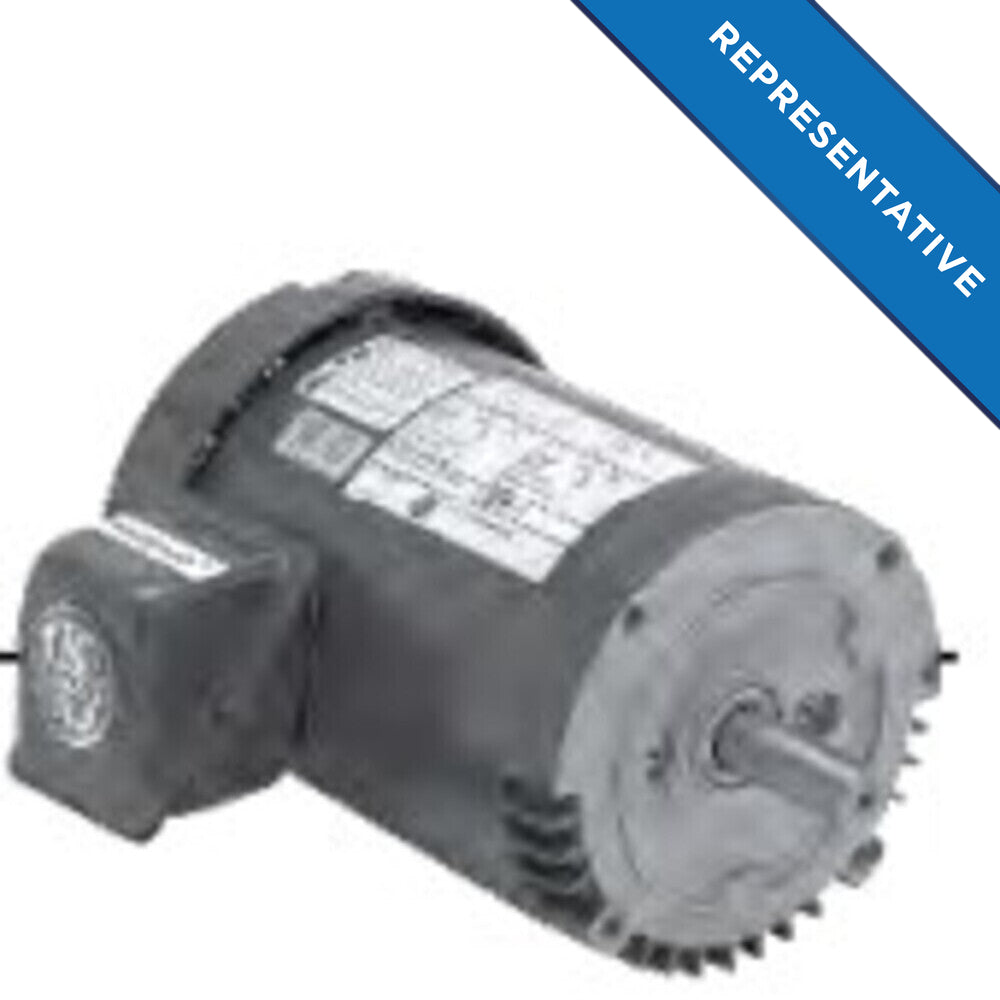

U.S. Motors T2P1AH General Purpose Three Phase TEFC Rigid Motor

Product Description

The U.S. Motors T2P1AH is a general-purpose three-phase motor with a TEFC design. It operates at a variable speed of 3600 RPM and has a power output of 2 horsepower. This motor is suitable for various industrial applications including pumps, compressors, and fans.

• Powerful three-phase operation
• TEFC enclosure for better durability
• Efficient full load efficiency rating of 85.5%

Product Highlights

Key features include a rigid mount, 60 Hz operating frequency, and a voltage rating of 208-230/460. The motor is designed for continuous duty and provides reliable performance over long periods.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T2P1AH

Technical Specifications

• Full Load Efficiency: 85.5%
• Full Load Amps: 5.1-5.1/2.6
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Voltage Rating: 208-230/460
• Insulation: Class B
• Weight: 37.13 lbs
• Frame Size: 56H
