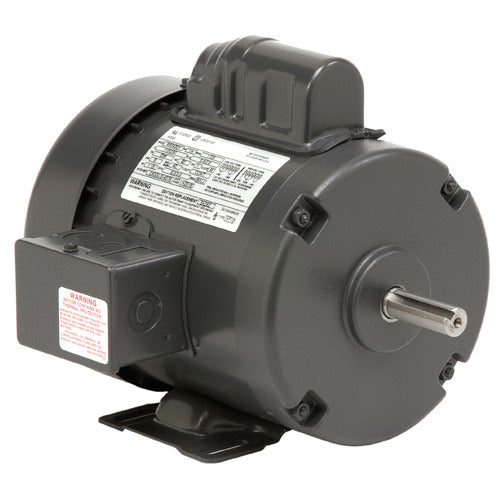

U.S. Motors T2CM2JH General Purpose Single Phase TEFC Rigid Base Motor

Product Description

The U.S. Motors T2CM2JH is a reliable general purpose single phase TEFC rigid base motor. This motor is designed for various applications requiring consistent performance. It operates at 2 horsepower and reaches a speed of 1800 RPM.

• Cap Start electrical type.
• Designed for continuous duty operation.
• TEFC enclosure for optimal protection.

Product Highlights

The motor is suitable for many applications, including HVAC systems and general industry uses where a dependable motor is essential.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: T2CM2JH

Technical Specifications

• Motor Application: General Purpose
• Horsepower: 2
• RPM: 1800
• Phase: Single Phase
• Voltage Rating: 115/208-230
• Mounting: Rigid Base
• Enclosure: TEFC
• Frame: 56H
• Full Load Amps: 18.9/10.3-9.4
• Efficiency: 81.5%
• Service Factor: 1
• Thermal Protection: Manual Reset
• Full Load Efficiency: 81.5%
• Weight: 54.0 LB
• Dimensions: 13.8 in
