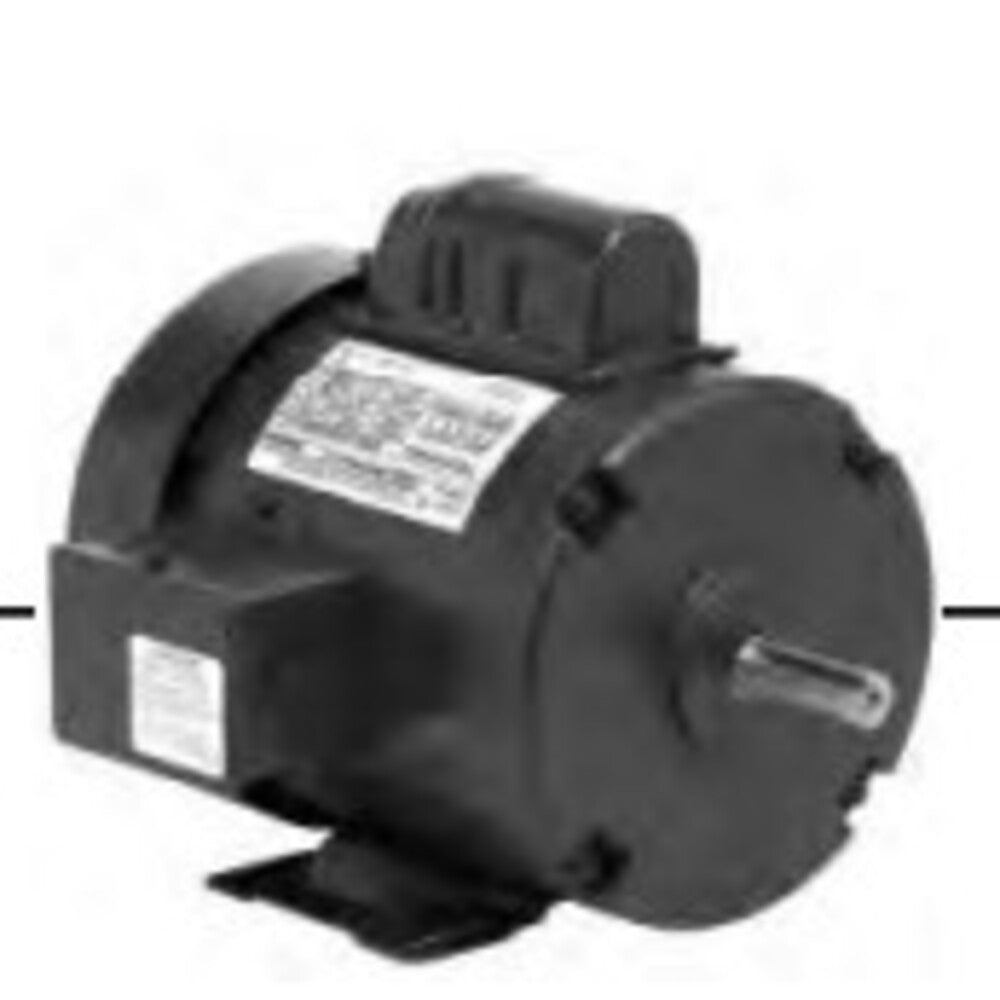

U.S. Motors T2CM1J14 General Purpose Single Phase TEFC Rigid Base Motor

Product Description

U.S. Motors T2CM1J14 is a general purpose single phase TEFC (Totally Enclosed Fan Cooled) rigid base motor. This motor has a power rating of 2 horsepower and operates at a speed of 3600 rpm. It is designed for multiple applications in various environments.

• Powerful 2 hp motor with 3600 rpm capability
• Rigid base design for secure mounting and stability
• TEFC enclosure for protection against dust and moisture

Product Highlights

This motor is suitable for HVAC, industrial, and commercial applications. Its robust design ensures continuous operation under demanding conditions. It features manual reset thermal protection and high efficiency operation.

Product Information

Standard Information

• Minimum Order Quantity:
• Maximum Order Quantity:

Technical Specifications

• Mounting: Rigid Base
• Voltage Rating: 115/208-230, 230, 115, 208
• Insulation: B
• HP: 2
• Poles: 2
• Duty: Continuous Duty
• Phase: Single Phase
• Full Load Efficiency: 80 %
• Motor Application: General Purpose
• Thermal Protection: Manual Reset
• RPM: 3600 rpm
• Service Factor: 1.15
• Enclosure Designation: TEFC
• C Dimension: 13.7 in
• Full Load Amps: 19.5/10.8-9.7
• Full Load RPM: 3450 rpm
• Frequency: 60 Hz
• Design: L
• Frame: 145T, 145
• Weight: 40.0 LB
• EAN or UPC: 786382076498
