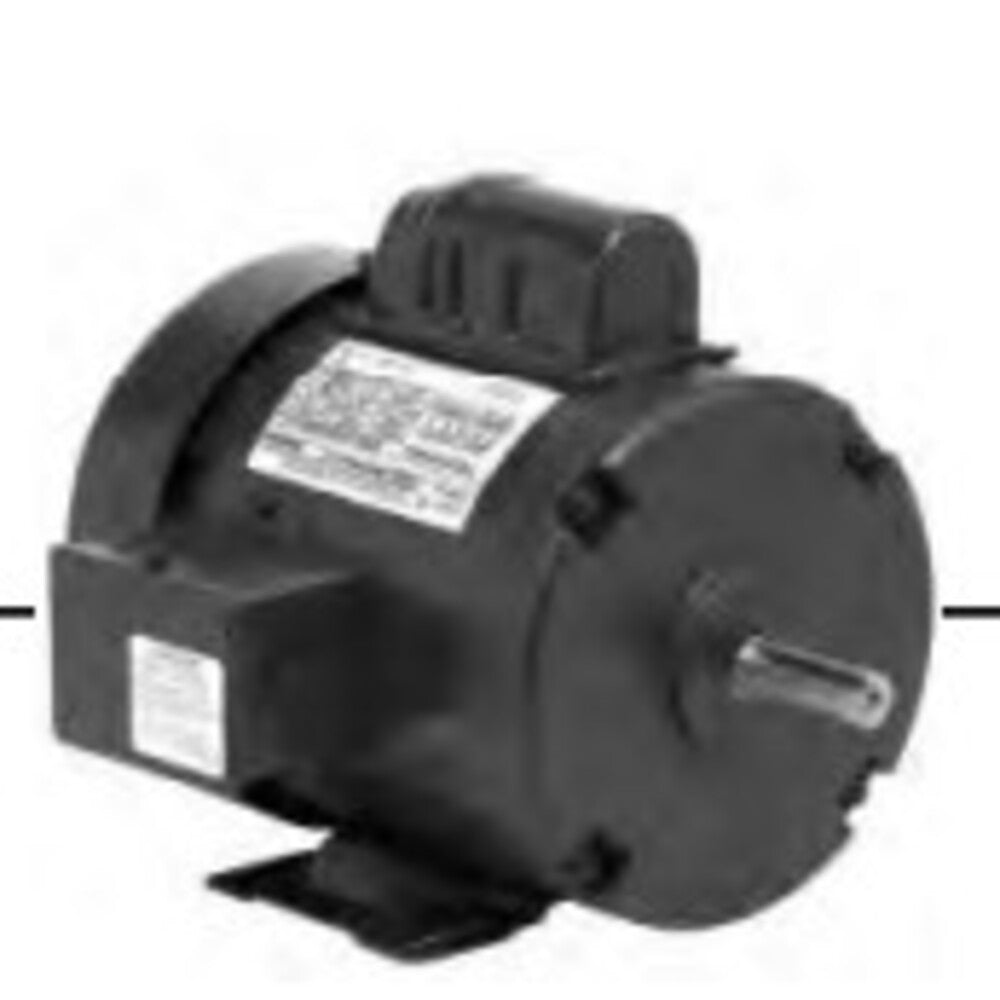

U.S. Motors T2CA2JH General Purpose Single Phase TEFC Rigid Base Motor

Product Description

The U.S. Motors T2CA2JH is a general purpose single phase motor with a two horsepower capacity, running at one thousand eight hundred RPM. This motor features a totally enclosed fan cooled design (TEFC) and is built for durability and efficiency.

• Powerful two horsepower motor
• Single phase operation for versatility
• Rugged TEFC enclosure

Product Highlights

The motor is designed for continuous duty applications, making it suitable for various uses including HVAC equipment, pumps, and fans.

Product Information

Standard Information

• Brand: U.S. Motors
• Motor Application: General Purpose

Technical Specifications

• HP: 2
• Frequency: 60 Hz
• RPM: 1800 rpm
• Mounting: Rigid Base
• Frame: 56, 56H
• Poles: 4
• Duty: Continuous Duty
• Enclosure: TEFC
• Voltage Rating: 115/208-230
• Full Load Amps: 18.9/10.3-9.4
• Weight: 54.0 LB
