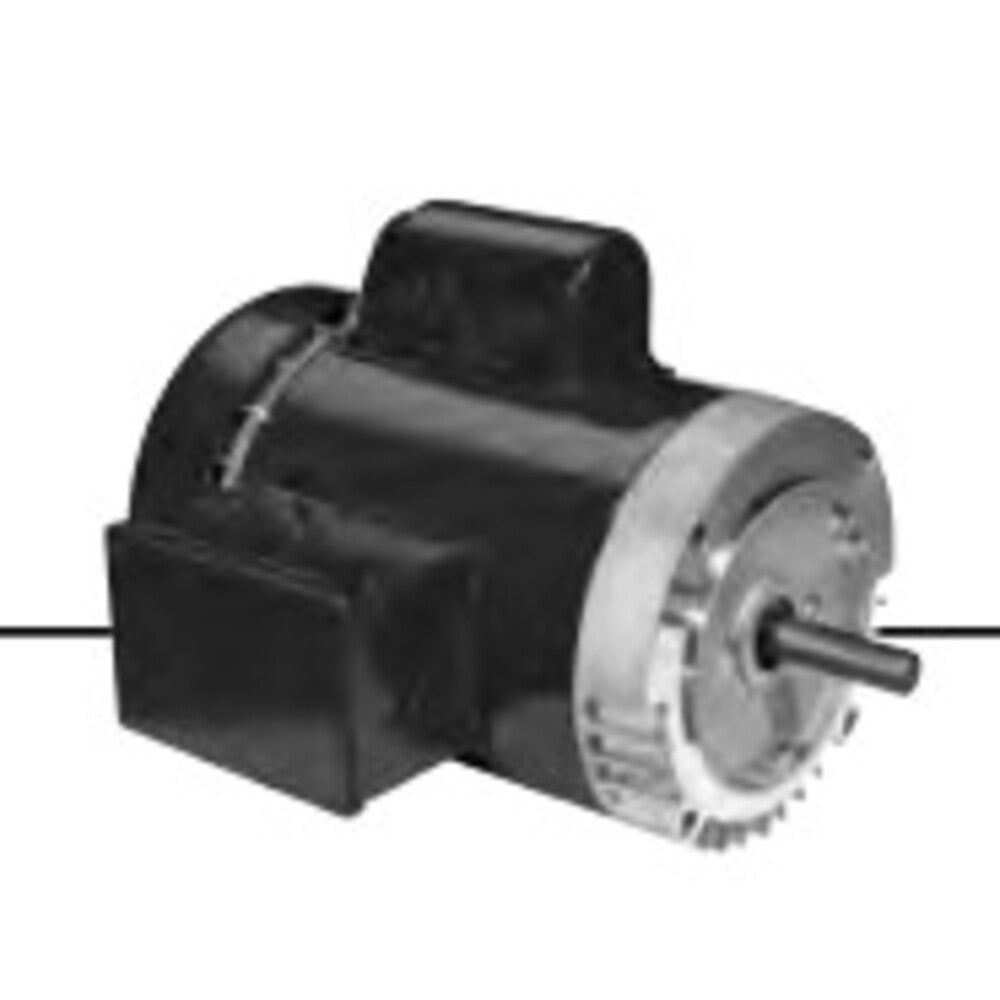

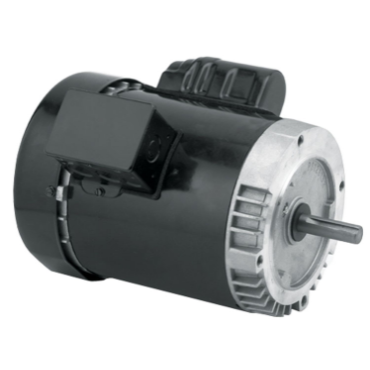

U.S. Motors T2CA2JCR General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors T2CA2JCR is a general purpose motor designed for a variety of applications. This motor operates at two horsepower with a single phase and delivers a consistent speed of 1800 rpm. Its robust TEFC enclosure protects the motor from dust and moisture, making it suitable for demanding environments.

• Power output: 2 HP
• Voltage rating: 115/208-230
• Service factor: 1

Product Highlights

This motor features an automatic reset thermal protection system and a continuous duty design, ensuring reliable performance over extended periods. It's ideal for HVAC systems, fans, and various other industrial applications.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 101424442

Technical Specifications

• Poles: 4
• Full Load Efficiency: 81.5%
• Frame: 56C
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Full Load Amps: 18.9/10.3-9.4
• Insulation Class: F
• Duty: Continuous Duty
• Thermal Protection: Automatic Reset
• Overall Weight: 31.0 lbs
• C Dimension: 14.3 in
