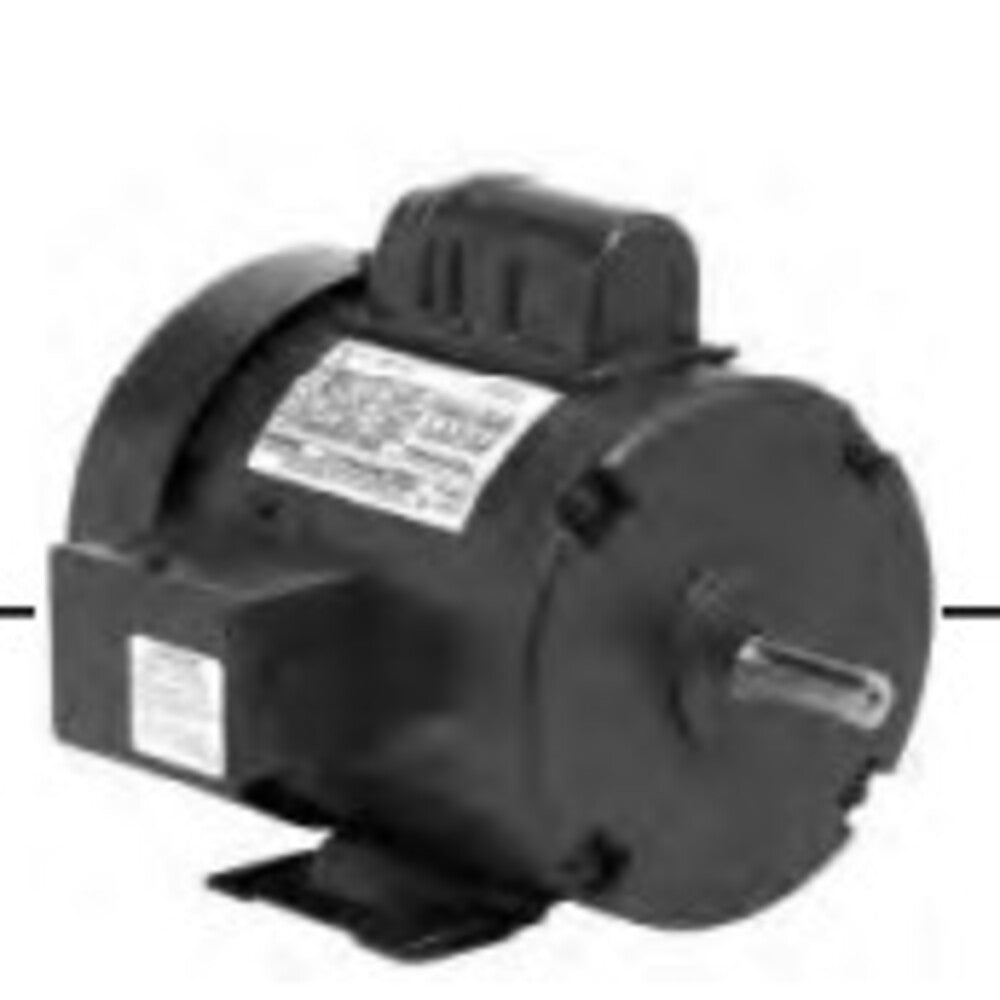

U.S. Motors T2C2JH General Purpose Single Phase TEFC Rigid Base Motor

Product Description

The U.S. Motors T2C2JH is a general-purpose motor designed for various applications. This single-phase motor operates efficiently at a power of two horsepower with a speed of one thousand eight hundred rpm. It features a totally enclosed fan-cooled (TEFC) design and is mounted on a rigid base, making it suitable for industrial and commercial uses.

• Power: 2 hp
• Voltage Rating: 115/208-230
• Duty: Continuous Duty

Product Highlights

This motor is engineered for reliability and performance, ideally used in HVAC systems, fans, and pumps.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T2C2JH

Technical Specifications

• RPM: 1800 rpm
• Service Factor: 1.15
• Voltage Rating: 115/208-230
• Phase: Single Phase
• Full Load Efficiency: 81.5%
• Mounting: Rigid Base
• Poles: 4
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• C Dimension: 13.8 inches
• Frequency: 60 Hz
• Frame: 56, 56H
• Full Load rpm: 1725 rpm
• Full Load Amps: 18.9/10.3-9.4
• Design: L
• Weight: 54.0 lb
• Insulation: F
• EAN or UPC: 786382070977
