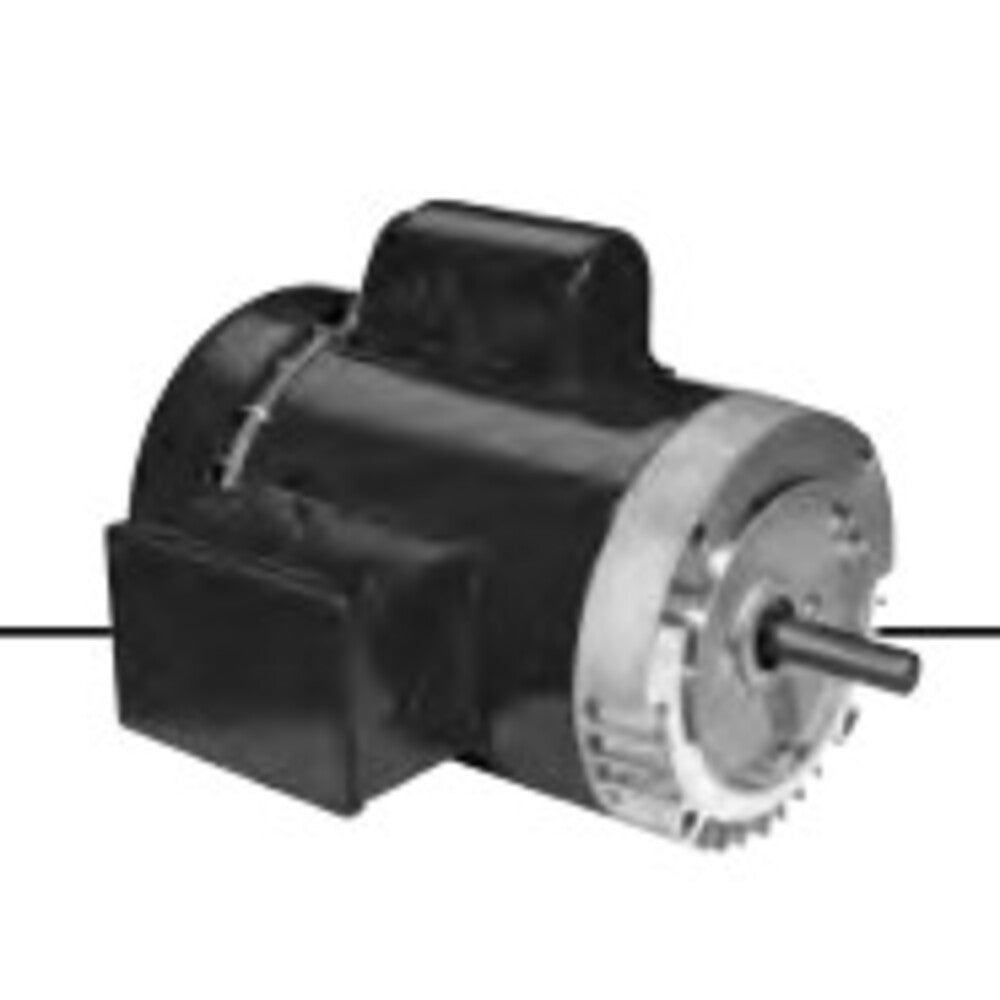

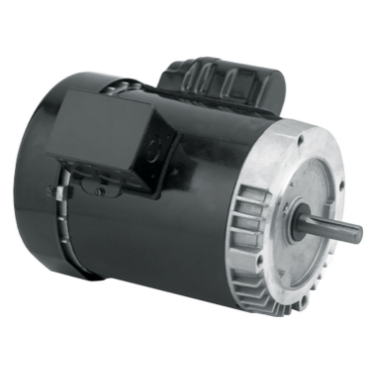

U.S. Motors T2C2JCR General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors T2C2JCR is a general-purpose single phase motor designed for various applications. It delivers two horsepower at 1800 RPM, making it suitable for a range of machinery and equipment. This motor operates at 60 Hz with a voltage rating of 115/208-230, featuring a TEFC enclosure for protection against dust and moisture. The C-Face mounting provides versatility in installation.

• Power: 2 HP
• Full Load Efficiency: 81.5%
• Continuous Duty Rating

Product Highlights

This motor is built for reliability and efficiency, suitable for industrial and commercial uses.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T2C2JCR

Technical Specifications

• Motor Application: General Purpose
• Poles: 4
• Enclosure: TEFC
• Frame Size: 56C
• Full Load Amps: 18.9/10.3-9.4
• Service Factor: 1.15
• Insulation Class: F
• C Dimension: 13.8 in
