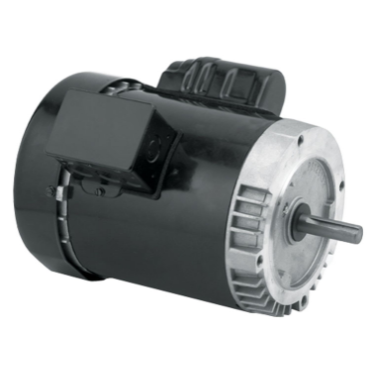

U.S. Motors T2C2J14CR General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors T2C2J14CR is a general purpose single phase TEFC C-face motor designed for various applications. It offers high efficiency and reliable performance with a power rating of two horsepower at an operating speed of 1800 rpm.

• Voltage rating of 115/208-230 volts for flexibility in various setups.
• Fully enclosed design for maximum protection against dust and moisture.
• Features C-face mounting for easy installation.

Product Highlights

This motor is ideal for HVAC and industrial applications, providing dependable operation in continuous duty environments.

Product Information

Standard Information

• Phase: Single Phase
• Motor Application: General Purpose

Technical Specifications

• HP: 2
• Full Load RPM: 1800
• Efficiency: 81.5%
• Service Factor: 1.15
• Frame Size: 145TC
• Weight: 35 lbs
• Insulation Class: F
• Mounting Type: C-Face
• Full Load Amps: 18.9/10.3-9.4
