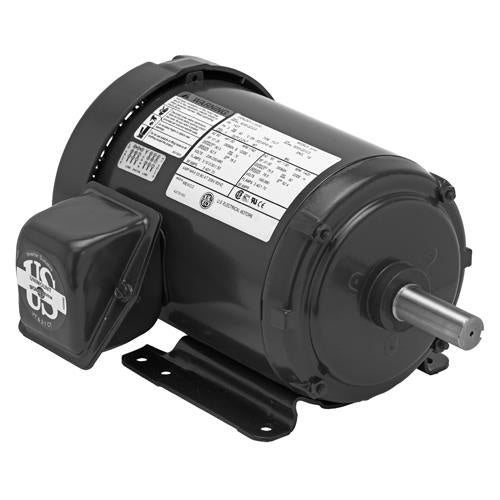

U.S. Motors T1P2AHZ General Purpose Three Phase TEFC Rigid Motor

Product Description

The U.S. Motors T1P2AHZ is a general purpose three-phase TEFC rigid motor designed for various applications. This motor is ideal for those requiring reliability and efficiency. It operates at one horsepower with a speed of 1800 RPM and is suitable for continuous duty.

• Rated for 208-230/460 voltage
• Built with a rigid mounting style
• Features a TEFC enclosure for optimal performance

Product Highlights

Utilize this motor in demanding environments where durability is essential. Its robust design ensures long-term operation with minimal maintenance.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T1P2AHZ

Technical Specifications

• C Dimension: 13.2 inches
• Mounting: Rigid
• Duty: Continuous Duty
• Service Factor: 1.25
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Hz: 60 Hz
• Full Load Amps: 3.3-3.2/1.5
• Full Load RPM: 1725 RPM
• Frame: 56HZ
• Voltage Rating: 208-230/460
• Full Load Efficiency: 85.5%
• Insulation: B
• Enclosure: TEFC
• Phase: Three Phase
• Poles: 4
• Weight: 35.5 LB
• EAN or UPC: 786382117351
