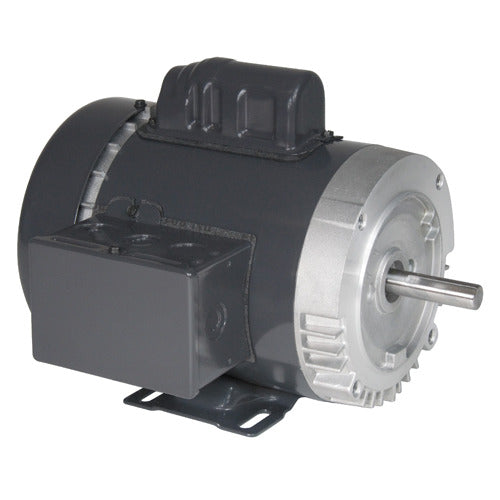

U.S. Motors T1CM2ZC General Purpose Single Phase TEFC C-Face/Base Motor

Product Description

The U.S. Motors T1CM2ZC is a general-purpose single-phase motor designed for various applications. This motor features a totally enclosed fan-cooled design that ensures durability and efficient operation. With a power rating of one horsepower and a rotational speed of one thousand eight hundred rpm, it is suitable for many industrial needs.

• Compact and efficient construction
• Designed for continuous duty
• Available in multiple voltage ratings

Product Highlights

Ideal for HVAC and other industrial applications, this motor is reliable and easy to install.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T1CM2ZC

Technical Specifications

• Service Factor: 1.15
• Hz: 50/60
• Thermal Protection: Manual Reset
• Motor Application: General Purpose
• C Dimension: thirteen point three inches
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Mounting: C-Face/Base
• Duty: Continuous Duty
• Poles: 4
• Voltage Rating: 100-120 & 200-240
• Full Load rpm: 1425 rpm, 1725 rpm
• RPM: 1800 rpm
• Enclosure: TEFC
• Frame: 56C
• Phase: Single Phase
• Insulation: B
• Full Load Amps: 11-9.2/5.5-4.7
• Weight: 3.0 lb
• EAN or UPC: 786382089627
