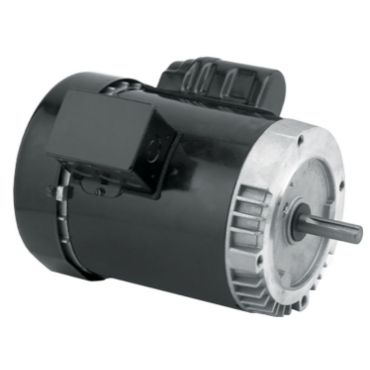

U.S. Motors T1CM2J14CR General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors T1CM2J14CR is a general purpose single phase motor designed for consistent performance. This TEFC C-Face motor is ideal for various applications requiring reliable and efficient operation.

• Rated at one horsepower with an operational speed of one thousand eight hundred rpm
• Features a continuous duty cycle for reliable long-term use
• Designed for easy mounting with C-Face configuration

Product Highlights

This motor is suitable for multiple general purpose applications, engineered to meet efficiency standards.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T1CM2J14CR

Technical Specifications

• HP: 1
• Full Load Efficiency: 70%
• Full Load RPM: 1725 rpm
• Voltage Rating: 115/208-230 V
• Phase: Single Phase
• C Dimension: 12.4 inches
• Frame: 143TC
• Service Factor: 1.15
• Thermal Protection: Manual Reset
• Mounting: C-Face - Less Base, C-Face
• Full Load Amps: 14/6.9-7
