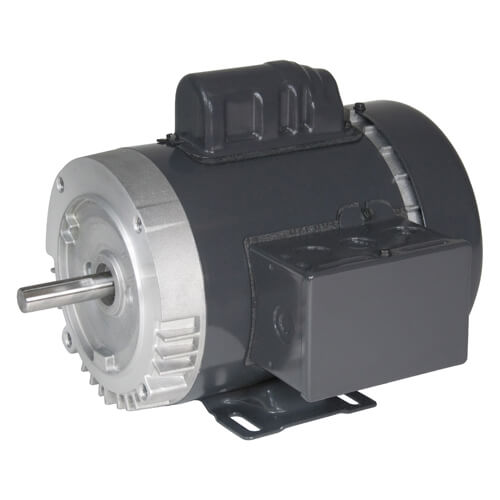

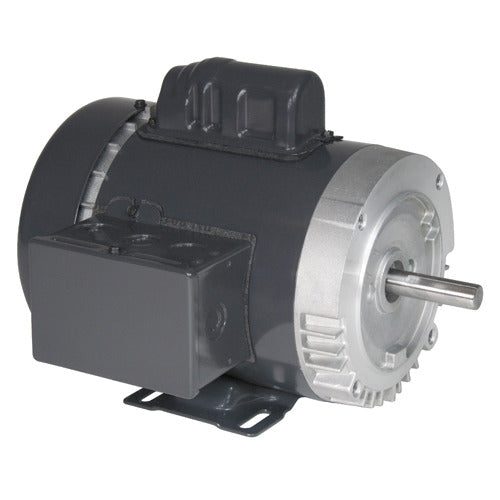

U.S. Motors T1CA2ZC General Purpose Single Phase TEFC C-Face/Base Motor

Product Description

The U.S. Motors T1CA2ZC is a General Purpose Single Phase TEFC C-Face/Base Motor designed for various applications. This motor is suitable for air compressors, pumps, conveyors, and general industrial equipment.

• Powerful 1 hp motor with 1800 rpm
• Designed with a C-Face/Base mount for easy installation
• Features TEFC (Totally Enclosed Fan Cooled) for reliability

Product Highlights

Ideal for HVAC systems and industrial machinery, this motor has a voltage rating of 100-120 and 200-240. It operates on 50/60 Hz and offers reversible rotation for diverse application needs.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T1CA2ZC

Technical Specifications

• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Full Load Amps: 11-9.2/5.5-4.7
• Frame: 56C
• Phase: Single Phase
• Voltage Rating: 100-120 & 200-240
• RPM: 1800 rpm
• Service Factor: 1.15
• Motor Application: General Purpose
• Thermal Protection: Automatic Reset
• C Dimension: 13.3 in
• Weight: 3.0 LB
• UPC: 786382088156
