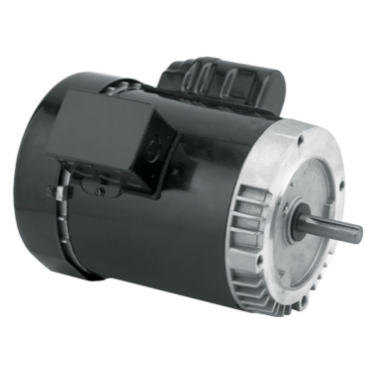

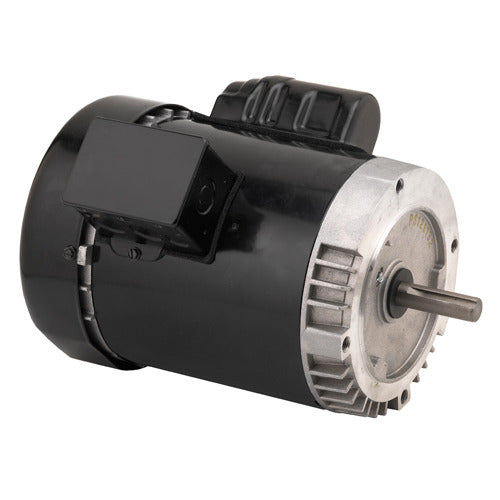

U.S. Motors T1CA2JCR General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors T1CA2JCR is a general-purpose single-phase TEFC C-face motor designed for a variety of applications. Built to offer reliable performance, this motor operates at one horsepower and delivers an efficient output of one thousand eight hundred revolutions per minute. With a robust design and efficient thermal protection, this motor is suitable for both residential and light commercial settings.

• Power: 1 HP
• Voltage: 115/208-230
• Frame Size: 56C

Product Highlights

This motor features automatic thermal reset protection, making it a dependable choice for your electrical needs.

Product Information

Standard Information

• Motor Application: General Purpose
• Phase: Single Phase

Technical Specifications

• Full Load Efficiency: 70%
• Full Load RPM: 1725
• Duty: Continuous Duty
• Service Factor: 1.15
• Enclosure: TEFC - Totally Enclosed Fan Cooled
• Current Rating: 14/6.9-7 Amps
• C Dimension: 12.3 inches
• Weight: 43 pounds
