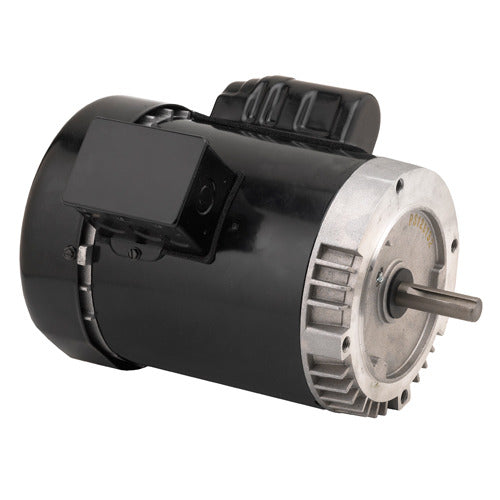

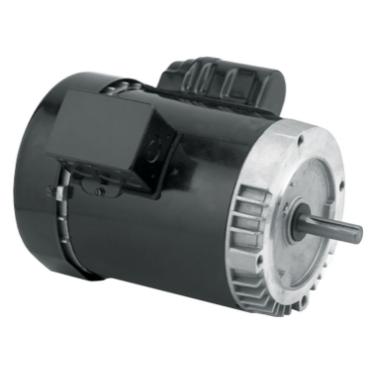

U.S. Motors T1CA2J14CR General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors T1CA2J14CR is a general-purpose motor designed for single-phase applications. This motor features a totally enclosed fan-cooled (TEFC) design that ensures durability and efficient operation. Ideal for various tasks, it operates at one horsepower and a speed of eighteen hundred rpm.

• Voltage rating of 115/208-230
• C-Face mounting for easy installation
• Automatic reset thermal protection

Product Highlights

This motor is suited for continuous duty applications and offers reliable performance across diverse environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T1CA2J14CR

Technical Specifications

• HP: 1
• Frame: 143TC
• Poles: 4
• Duty: Continuous Duty
• Insulation Class: B
• Service Factor: 1.15
• Full Load Efficiency: 70%
• Full Load Amps: 14/6.9-7
