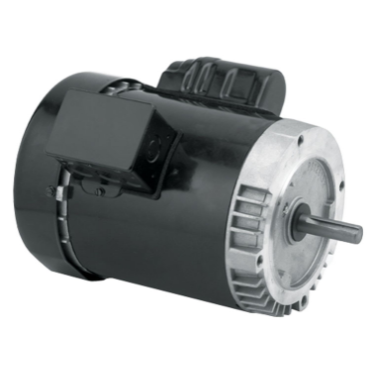

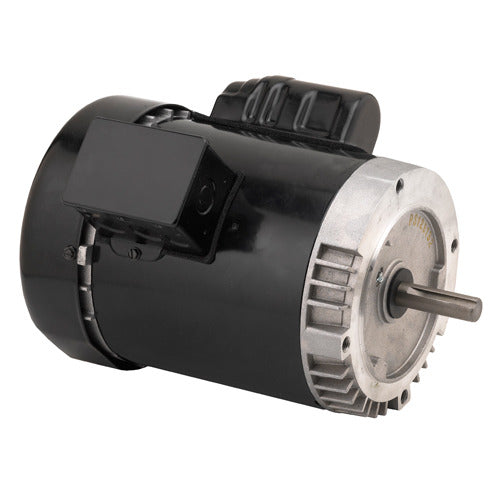

U.S. Motors T1CA1JCR General Purpose Single Phase TEFC C-Face Motor

Product Description

U.S. Motors T1CA1JCR is a general-purpose single-phase TEFC C-face motor. This motor operates efficiently at one horsepower and can achieve a speed of three thousand six hundred revolutions per minute. It functions on a voltage rating of one hundred fifteen to two hundred thirty-eight volts and is designed for continuous duty applications.

• One horsepower motor
• TEFC enclosure for durability
• C-face mounting for versatile installation

Product Highlights

The T1CA1JCR motor is suitable for a variety of applications, including pumps and fans, making it a reliable choice for both residential and commercial settings.

Product Information

Standard Information

• MPN: T1CA1JCR
• Brand: U.S. Motors

Technical Specifications

• Motor Application: General Purpose
• Voltage Rating: 115/208-230
• Phase: Single Phase
• Poles: 2
• Service Factor: 1.15
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Frame: 56C
• Duty: Continuous Duty
• RPM: 3600
• Full Load Efficiency: 66.7%
• Thermal Protection: Automatic Reset
• Full Load Amps: 13.6/6.9-6.8
• C Dimension: 12.3
• Weight: 27.0 LB
• Insulation: B
