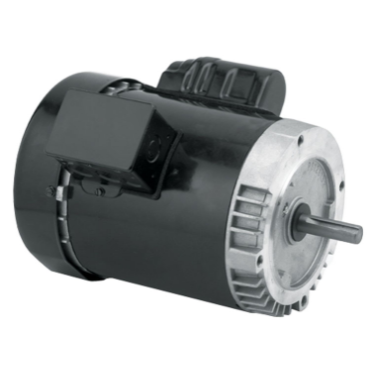

U.S. Motors T1C3JCR General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors T1C3JCR is a general-purpose single phase motor designed for various applications. This motor operates efficiently at one horsepower with a constant speed of twelve hundred rpm. It features a C-Face mounting system and is rated for 115/208-230 volts, making it suitable for diverse electrical setups.

• 1.0 horsepower
• Operating speed of 1200 rpm
• TEFC (Totally Enclosed Fan Cooled) design

Product Highlights

This motor is ideal for continuous duty applications and designed for single-phase use. The TEFC enclosure helps protect the motor from dust and moisture, ensuring reliability in various environments.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 101435510

Technical Specifications

• Horsepower: 1
• Full Load RPM: 1140 rpm
• Voltage Rating: 115/208-230
• Phase: Single
• Frame Size: 56C
• Weight: 44 lbs
• Service Factor: 1.15
• Enclosure Type: TEFC
• Efficiency: 77.9%
