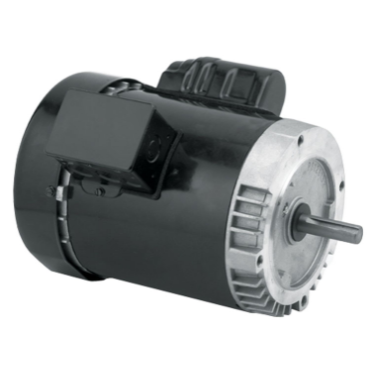

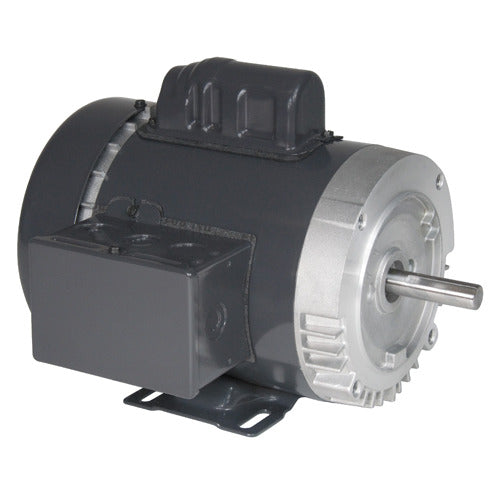

U.S. Motors T1C2J14C General Purpose Single Phase TEFC C-Face/Base Motor

Product Description

U.S. Motors T1C2J14C is a general purpose single phase motor that delivers reliable performance. Designed with a Totally Enclosed Fan Cooled (TEFC) enclosure, this motor is suited for various applications, especially in environments where dust and moisture are concerns.

• Powerful 1 hp output
• Operates at 1800 rpm
• Voltage rating of 115/208-230

Product Highlights

This motor is built for continuous duty and features a C-Face mounting for easy installation. It is designed to offer efficient performance in various settings, making it a flexible choice for many needs.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T1C2J14C

Technical Specifications

• Duty: Continuous Duty
• Phase: Single Phase
• Frequency (Hz): 60 Hz
• Voltage Rating: 115/208-230
• C Dimension: 12.4 inches
• Mounting: C-Face - With Base
• Full Load Efficiency: 70%
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Full Load RPM: 1725 RPM
• Frame: 143TC
• Full Load Amps: 14/6.9-7
• Service Factor: 1.15
• Insulation Class: B
