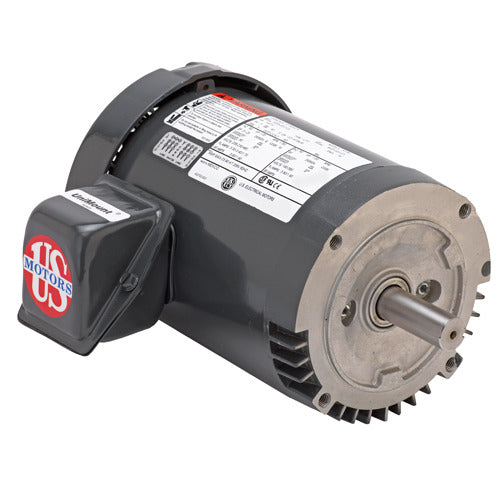

U.S. Motors T13S3DCR General Purpose Three Phase TEFC C-Face Footless Motor

Product Description

The U.S. Motors T13S3DCR is a general purpose three phase TEFC C-Face footless motor designed for diverse industrial applications. This motor provides reliable operation for drives requiring continuous duty with high efficiency and robust performance.

• Powerful 1/3 horsepower and a full load speed of 1140 RPM
• Dual voltage rating of 208-230/460 volts
• TEFC enclosure suitable for harsh environments; designed with sealed ball bearings

Product Highlights

This motor is ideal for various industrial applications including fans, compressors, and pumps. It meets the CE standards for quality and performance.

Product Information

Standard Information

• Motor Application: General Purpose
• Duty: Continuous Duty

Technical Specifications

• Voltage Rating: 208-230/460
• C Dimension: 11.2 inches
• Mounting: C-Face - Less Base
• Full Load Amps: 1.6-1.6/0.8
• Phase: Three Phase
• Poles: 6
• Service Factor: 1.15
• Efficiency: 77%
• Weight: 32.0 lbs
• Frame: 56C
