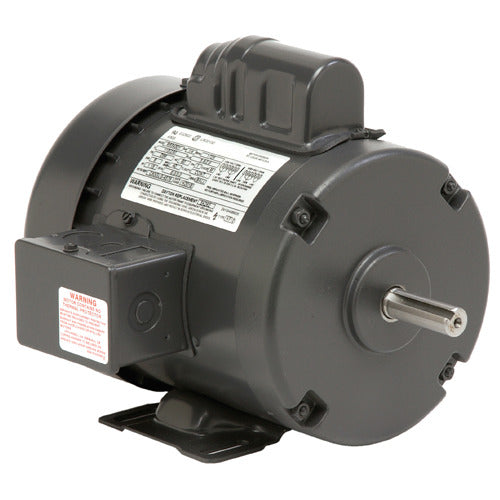

U.S. Motors T13C1J4 General Purpose Single Phase TEFC Rigid Motor

Product Description

The U.S. Motors T13C1J4 is a general-purpose motor designed for various applications. This robust single-phase motor operates at one-third horsepower and provides a high speed of three thousand six hundred rpm. It features a totally enclosed fan-cooled (TEFC) construction for optimal protection against dust and moisture.

• Full load amps of 5.5/2.7-2.8
• Rigid base mounting for stability
• Various voltage ratings: 115/208-230

Product Highlights

Reliable, efficient, and versatile for industrial applications, the T13C1J4 is ideal for HVAC units, pumps, and compressors.

Product Information

Standard Information

• Phase: Single Phase
• Duty: Continuous Duty

Technical Specifications

• Power Rating: 1/3 HP
• RPM: 3600
• Enclosure: TEFC - Totally Enclosed Fan Cooled
• Voltage Rating: 115/208-230
• Frame Size: 48
• Full Load Amps: 5.5/2.7-2.8
• Service Factor: 1.15
• Weight: 19.0 LB
