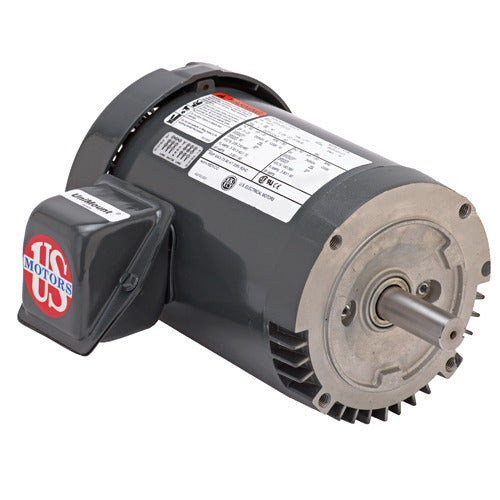

U.S. Motors T12S1ACR General Purpose Three Phase TEFC C-Face Motor

Product Description

The U.S. Motors T12S1ACR is a general purpose three phase TEFC C-face motor designed for various applications. This motor operates at a half horsepower and a speed of three thousand six hundred revolutions per minute. It is suitable for use in pumps, fans, compressors, and material handling equipment.

• 1/2 horsepower
• 3600 RPM
• 208-230/460 voltage rating

Product Highlights

The motor features a TEFC enclosure, ideal for use in damp and dusty environments. With its efficient design and three-phase performance, it is a reliable choice for industrial applications.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T12S1ACR

Technical Specifications

• Enclosure: TEFC
• Voltage Rating: 208-230/460
• Mounting: C-Face - Less Base, C-Face
• Service Factor: 1.15
• Motor Application: General Purpose
• RPM: 3600
• HP: 1/2
• Insulation: B
• Full Load Amps: 2.18-2.18/19
• Efficiency: 64%
• Frame: 56C
• Phase: Three Phase
• Design: B
• Duty: Continuous Duty
