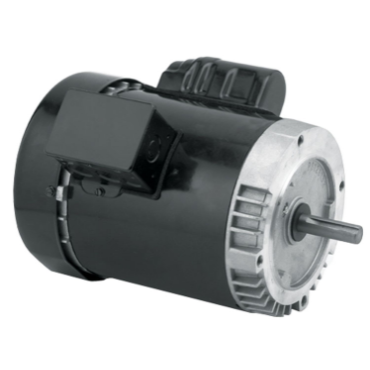

U.S. Motors T12CA2JCR General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors T12CA2JCR is a general-purpose single-phase motor designed for various applications. This 1/2 horsepower motor operates at 1800 RPM and features a TEFC enclosure, ensuring durability and performance. It is suitable for use in HVAC systems, fans, and other equipment requiring reliable motor solutions.

• 1/2 horsepower capacity
• TEFC enclosure for protection against dust and moisture
• Voltage ratings of 115/208-230 with a continuous duty operation

Product Highlights

The T12CA2JCR offers a robust design capable of handling 4 poles and automatic reset thermal protection for reliable performance. Its C-face mounting design allows for easy installation into existing systems or new setups.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T12CA2JCR

Technical Specifications

• HP: 1/2
• Full Load Amps: 9/4.3-4.5
• Efficiency: 60.7%
• Voltage Rating: 115/208-230
• Full Load RPM: 1725
• Frame Size: 56C
• Service Factor: 1.15
• Thermal Protection: Automatic Reset
