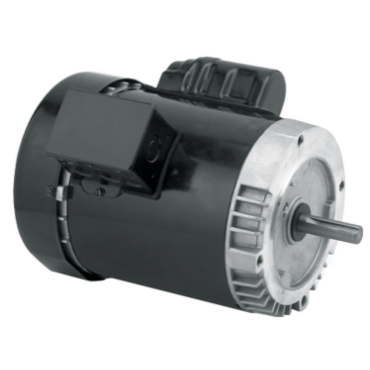

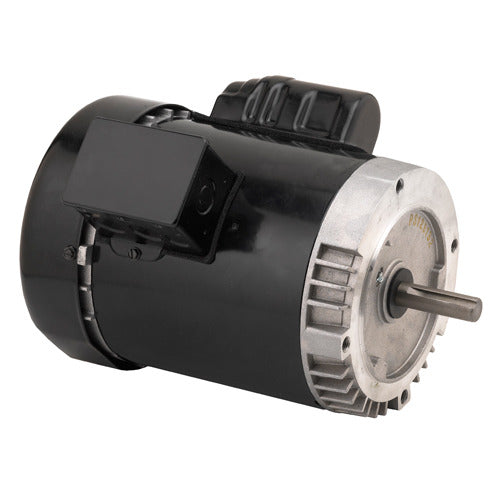

U.S. Motors T12C3JCR General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors T12C3JCR is a general-purpose single-phase motor designed for various commercial and industrial applications. This motor features a TEFC, or Totally Enclosed Fan Cooled, design, which enhances durability and performance in tough environments.

• 1/2 horsepower with a maximum speed of 1200 RPM
• C-Face mounting for ease of installation
• Built for continuous duty with reliable performance

Product Highlights

This motor is suitable for applications requiring robust performance and reliability.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T12C3JCR

Technical Specifications

• HP: 1/2
• Voltage Rating: 115/208-230
• Phase: Single Phase
• Full Load RPM: 1140 RPM
• Enclosure: TEFC
• Frame: 56C
• Weight: 22.0 LB
• Service Factor: 1.15
• Full Load Amps: 10.4/5.1-5.2
• Duty: Continuous Duty
• Bearings Type: Ball / Ball
